Optimal water quality for brewing

Brewing and pure water: what we do about it

Brewing and pure water: what we do about it.

Various parameters influence the safety and taste of a beverage. That is why the quality of your brewing water plays an important role in the perfect end product. To ensure that the various parameters such as water hardness, residual alkalinity, pH value and sodium content can be monitored and maintained, HeylNeomeris offers a wide range of measurement technology products. For example, we offer the online analysis device Testomat® EVO TH CAL (Art. No. 100712) for monitoring water hardness by titration. To determine the pH value, we recommend the high-quality LAQUAtwin pH-11 from Horiba, a mobile measuring device in pocket tester format (Art. No. 895650).

Another important product is the emec LOTUS MINI 8 & MINI 20 chlorine dioxide generator (Art. No. 896620 & 896600). The LOTUS MINI system is a device for producing, dosing and monitoring chlorine dioxide for disinfecting water and is available as a system with a capacity of 8 g/h (192 g/day) and as a system for up to 20 g/h (480 g/day). Chlorine dioxide is produced by the acid-chlorite process from diluted hydrochloric acid (HCl 9%) and sodium chlorite (NaClO2 7.5%). This device offers precise and reliable analysis and is ideal for daily quality control.

In addition to the measuring technology, you will receive extensive advice and services to ensure that you achieve truly reliable measurement results. Our experts from HeylNeomeris will help you select the right products and how to use them. We also offer practical product training and reliable maintenance to ensure the longevity and accuracy of your measuring instruments.

You can find all our products in our online shops. Visit us and discover our extensive range of high-quality measurement technology products for your brewery. We are your reliable partner for optimal water quality for your product.

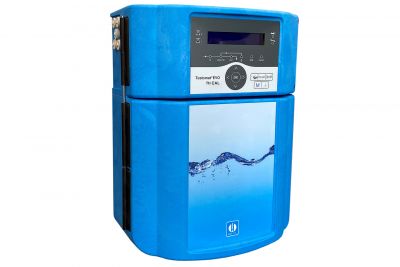

Testomat® EVO TH CAL

The Testomat® EVO TH CAL with additional calibration function determines the water hardness fully automatically by titration. The device is suitable for monitoring the water quality of water treatment and drinking water systems, industrial boilers and for monitoring process water.



Proven performance profile:

  • Highly accurate titration using a piston dosing pump
  • Reliable and low-maintenance operation
  • Minimal reagent and water consumption
  • Analog output 0/4–20 mA
  • Serial RS232 interface for transferring measurement data and messages/alarms
  • Programmable hardness unit in °dH, °f, ppm CaCO3, mmol/l
  • 2 independent limit values with adjustable switching functions and switching option after a configurable number of bad analyses
  • Analysis triggering: quantity-dependent via contact water meter | automatic interval operation (0–99 minutes)
  • Indicator quantities: 100 and 500 ml bottles

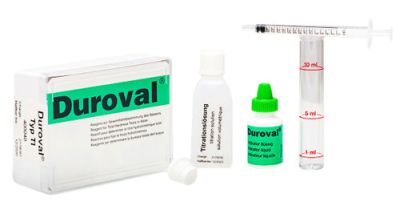

DUROVAL® TI Test Kit 0-30 °dH

Industrial kit for determining water hardness in all hardness ranges by complexometric titration with a liquid titrant and a dosing pipette precisely calibrated in hardness units.

Particularly suitable for equipping water treatment plants. The contents of the set are: measuring tube, liquid indicator, calibrated dosing pipette 0–30 °dH and 30 ml titration solution.

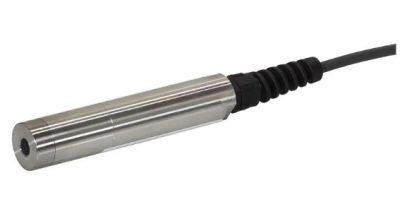

NeoTec Select Optical Oxygen Sensor with Modbus Output

(12 VDC output, 316L, 10 meter cable)



The oxygen sensor is durable and reliable:

  • Stainless steel SS316 (fresh water housing option)
  • Titanium (salt water housing option)
  • Optical technology allows for maintenance-free use for up to 2 years

Save time during setup: No calibration required thanks to plug and play.

Digital communication is via an open protocol (Modbus RS485 signal).

JUMO tecLine pH electrode

(glass shaft + high-temperature gel, hole diaphragm, VP plug-in head Pg13.5, 120mm, salt reserve, PT100)



Typical applications are sterilization applications.

Double-chamber design for electrode poisons, media containing fluoride/hydrofluoric acid up to 1000 mg HF/l



  • Proven JUMO HT glass (high-temperature pH membrane glass) 0…14 pH
  • JUMO DS membrane glass for sterilization applications
  • Cartridge conduction system with silver-ion-free reference electrolyte (gel)
  • Pressure-resistant versions up to 10 bar (50 °C)
  • Temperature range: 0…135 °C
  • Optional integrated temperature probe
  • Redox versions with platinum or gold tip up to ±2000 mV

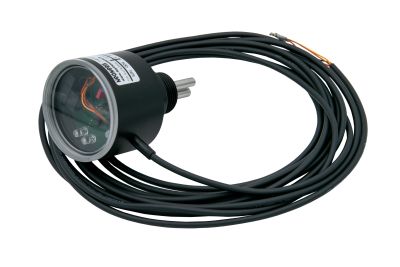

N-LF420 0-2000μS conductivity meter

(4–20mA output, LED display, 3/4 inch screw-in thread)



High-quality conductivity meter with a 4–20mA signal output for forwarding the measured value, for example to a higher-level controller. The measurement is temperature-compensated and therefore provides you with an accurate measurement result. Here too, we have the option of offering you a customized version in terms of the connection, the LEDs, the measuring range and even a private label.

The acrylic glass cover used ensures that the light from the LEDs is widely dispersed, and the current LED status can be recognized from a distance in darker rooms. Quality made in Germany.

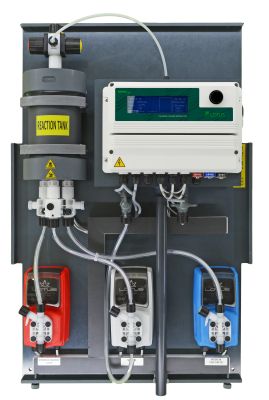

emec LOTUS MINI – chlorine dioxide generator

The LOTUS MINI system is a device for producing, dosing and monitoring chlorine dioxide for disinfecting water. It is available as a system with a capacity of 8 g/h (192 g/day) and as a system for up to 20 g/h (480 g/day). Chlorine dioxide is produced by the acid-chlorite process from diluted hydrochloric acid (HCl 9%) and sodium chlorite (NaClO2 7.5%).

The chlorine dioxide production by LOTUS MINI can be controlled according to the flow of the water or according to a predefined setpoint.

No chlorine dioxide is stored or stored; thus, outside the process application, neither chlorine dioxide gas nor concentrated solutions are produced.

LOTUS MINI is designed so that the chlorine dioxide is generated in a special reaction chamber. Safety is ensured by multifunctional valves at the injection points into the reaction chamber. The starting chemicals are stored in tanks and fed into the reaction chamber via suction lances. Integrated level sensors automatically stop the pumps when the tanks are empty.



The Lotus Mini system is equipped with the following components:

  • Lotus control unit
  • Dosing pumps for HCI (red) and NaCIO2 (blue)
  • Pump for dilution water (gray)
  • 3 SEFL flow sensors to ensure increased safety
  • Multifunctional valve MFKT/V, which regulates pressure and safety and also acts as an anti-siphon and drain valve
  • 1 reaction chamber
  • Injection valves
  • 2 suction lances

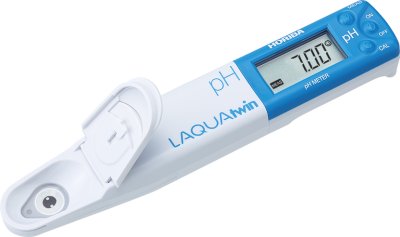

The LAQUAtwin series of instruments is the world’s first pocket-sized measuring instruments.

They are your mobile laboratory – for use on site: ideal for water quality tests in the field of water, drinking and process water and many other applications.

HORIBAs unique compact meters integrate electrode, display and sample container to enable simple, effective on-site testing by direct measurement with a single drop.



We offer these devices in the following versions:

  • Horiba LAQUAtwin pH Tester with 2 calibration points
  • Horiba LAQUAtwin Conductivity, TDS, Temperature Multiparameter Tester

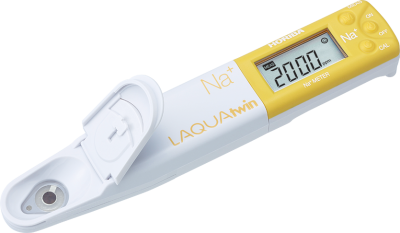

  • Horiba LAQUAtwin Sodium Ion (Na+) Tester with 2 calibration points and temperature measurement

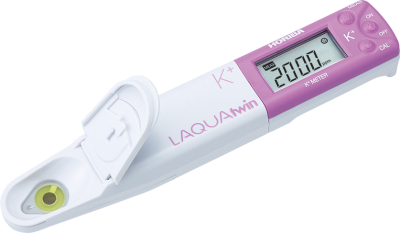

  • Horiba LAQUAtwin Potassium Ion (K+) Tester with 2 calibration points and temperature measurement
  • Horiba LAQUAtwin Calcium Ion (Ca2+) Tester with 2 calibration points and temperature measurement

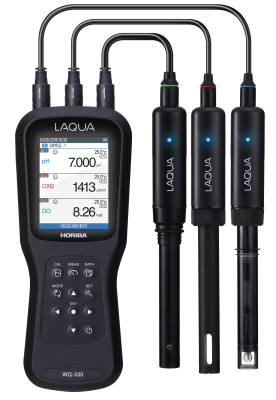

Horiba LAQUA WQ330-K – 3-channel

(professional measuring instrument for various parameters in an analysis case)



  • Large color LCD display with LED backlight for use in all conditions, even in direct sunlight
  • A configurator allows you to choose freely from the WQ-300 series of Horiba meters (1 to 3 channels), measurement parameters (sensor cartridges) and the desired cable length (with integrated sensor holder + digital module)
  • Easy and safe operation thanks to a small number of operating buttons and an LED status display on the sensor
  • Electrode wear indicator, measurement stability indicator on the device and sensor, locking function to “save” currently measured values on the display, free naming of the measuring point (8 characters), automatic calibration functions, integrated sensor holder, self-diagnosis function, GLP functions
  • Fold-out stand on the back, transfer of measurement data to a computer or cell phone via USB or WiFi
  • Automatic sensor recognition through the use of sensor cables with integrated digital sensor receptacle
  • Languages: German, English, French, Spanish, Portuguese, Chinese

Before water can be turned into good beer, it has to be pure. We can help you with that.

Many people are proud of the German purity law for beer brewing; not only because we have this regulation, but above all because we can comply with it. It goes without saying that this is only possible with the best water quality.

In addition to decades of experience in water purity, we also have extensive technical equipment. Our range can support you in every aspect of the art of brewing that has to do with water. A good example is the NeoTecMaster®.

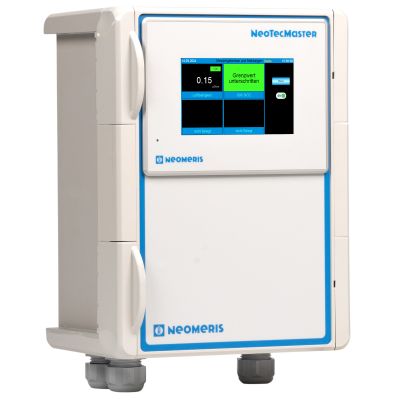

NeoTecMaster®

NeoTecMaster®-5 inch in IP 66 housing as a 4-channel system, preconfigured to accept up to 8 incoming 4–20 mA signals, one R232 signal and one Modbus signal, optionally expandable to 8 channels.

Our 4- or 8-channel system allows you to process up to four or eight measurement signals. For this purpose, 4–20 mA/RS232 and Modbus RTU are available as signal inputs. The received data is visualized and displayed as a trend.

The modular addition of optional modules (slaves) makes it possible to implement common control concepts.

Further advantages:

  • Easy operation
  • Integration of the Testomat® device world
  • Integration into the existing control cabinet, alternatively we offer you our NeoTecMaster® housing
  • Functionality Modularly expandable with NeoTec slave modules (measurement, control, regulation)
  • Available as a built-in or surface-mounted variant
