UVprofessional pool medium pressure unit

Product number: 891165
Price on request

Available variants

Flow rate at UV transmission 98% / 1cm and 600 J/m2 UV exposure : 131 m3/h, 14 m3/h, 24 m3/h, 247 m3/h, 42 m3/h


Description "UVprofessional pool medium pressure unit"

UV medium-pressure systems for water disinfection and the decomposition of organically bound chlorine (chloramines) in swimming pool water.

The cost-effective UV-C disinfection is excellently suited for swimming pool water, swimming pool attractions, fountains and pond systems. UV treatment does not introduce any unwanted by-products into the water that could lead to possible side effects such as skin or eye irritation. UV treatment provides supplementary protection against chlorine-resistant organisms and reduction of algae formation in swimming and garden ponds without endangering the animal and plant population of the pond facilities. UV disinfection in swimming pool attractions and fountains prevents bacteria from aerosols from being inhaled.

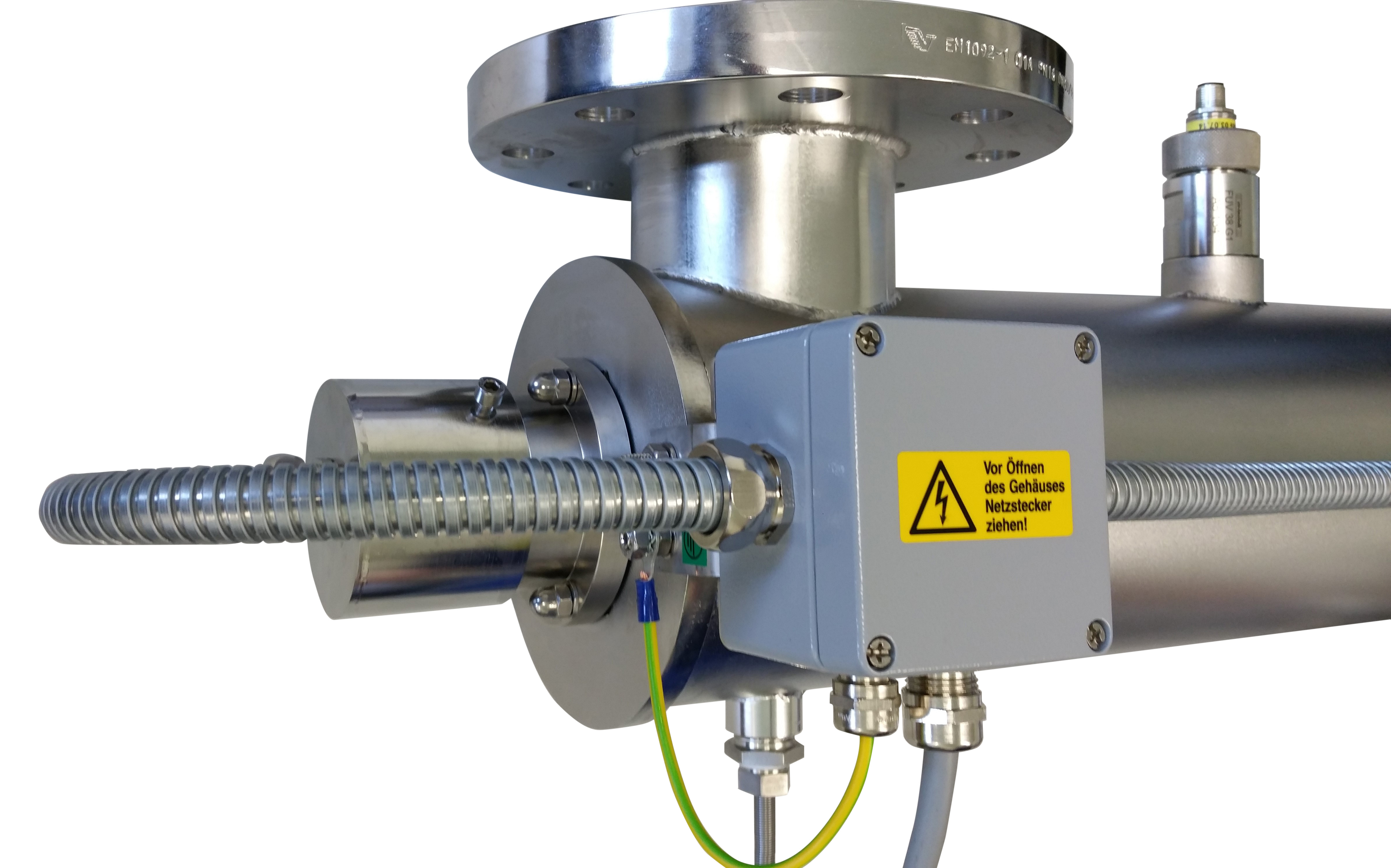

Stainless steel reactor (1.4571 DIN EN 10217-7, external electropolished) with flange connections according to DIN 2642, quartz immersion tube and UV medium pressure lamp, electronic ballast in sheet steel housing with multifunctional UV monitor with coloured background lighting, operating hours counter, manual/auto switch, power supply (3L, N, PE, 380/400V ±10%, 50/60 Hz) incl. UV monitoring system (ÖVGW / DVGW sensor), remote control input, temperature monitoring and signal outputs.

Pool MS 14:
Flow rate: 14 m³/h at 600 J/m²
UV lamp: 1x 650 Watt
Connection: DN 65, PN10

Pool MS 24:
Flow rate: 24 m³/h at 600 J/m²
UV lamp: 1x 1000 Watt
Connection: DN 65, PN10

Pool MS 42:
Flow rate: 42 m³/h at 600 J/m²
UV lamp: 1x 2000 Watt
Connection: DN 65, PN10

Pool MS 131:
Flow rate: 131 m³/h at 600 J/m²
UV lamp: 1x 3000 Watt
Connection: DN 150, PN10

Pool MS 247:
Flow rate: 247 m³/h at 600 J/m²
UV lamp: 1x 5000 Watt
Connection: DN 200, PN10
