Testomat 2000® CLT self clean

Product number: 100245
7.834,30 €*
* Prices excl. VAT plus shipping costs.

Available variants

Language in the display : English, French, German
Performance/execution : 115 V/50-60 HZ, 230 V/50-60 HZ

Product information

Dimensions: 380 x 280 x 480 mm
Weight: 10,600 kg
Measurement parameters: Total chlorine
Measuring range: Total chlorine: 0.00 – 0.99 mg/l (Resolution: 0.01 mg/l) 1 – 2.5 mg/l (Resolution: 0.1 mg/l)
Range of application: Monitoring of chlorination plants for drinking water | Monitoring of chlorination plants for swimming pools • Provision of protection for reverse osmosis membranes • Controlling of chlorine biocides and conditioning agents
Menu navigation: German, English, French


Description "Testomat 2000® CLT self clean"

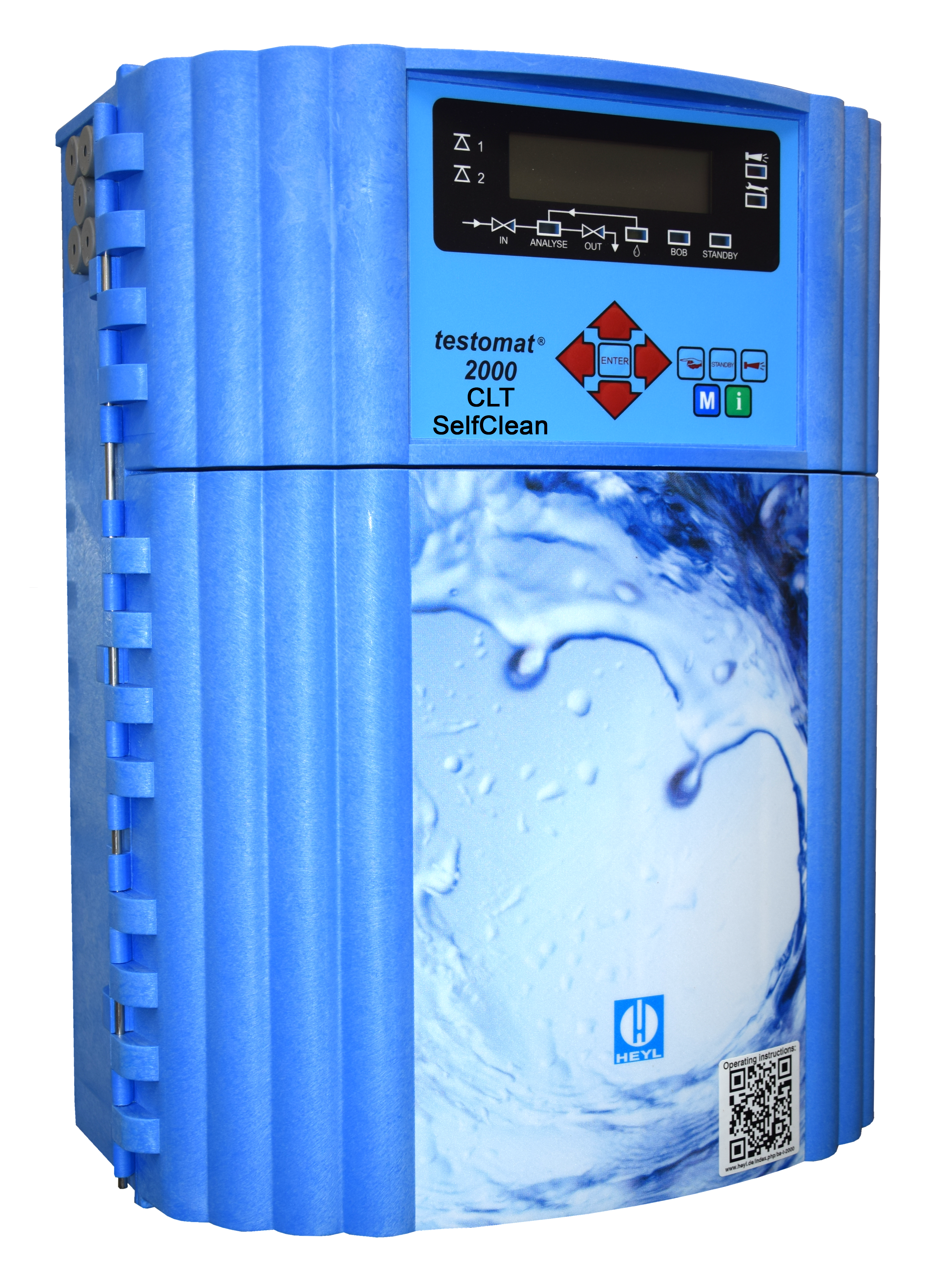

The Testomat 2000® CLT Self Clean process photometer with additional cleaning function for the measuring chamber is an online analyzer for monitoring the total chlorine content (CLT) in the range of 0-2.5 mg / l (ppm). Switchable to free chlorine in the same range.

Performance profile:
  • Analysis via automatic dosing of three reagents
  • The analysis result is displayed after a reaction time of approx. 1 min. (Measuring time without rinsing time)
  • 2 independently programmable limit contacts for monitoring and control tasks
  • Menu-driven operation and programming via plain text display
  • High-precision titration using a piston dosing pump
  • Analysis initiation:
    • Automatic interval operation (Interval pause adjustable from 0–99 min)
    • External control
    • Dynamic (fatigue-dependent interval operation)
    • Quantity dependent via contact water meter
  • Two independent limits with hysteresis (1, 2 oder 3 bad analyzes) and adjustable switching functions
  • Monitoring of two measuring points (Switching by external solenoid valves)
  • programmable service address
  • Internal error documentation
  • Programmable maintenance interval for maintenance request
