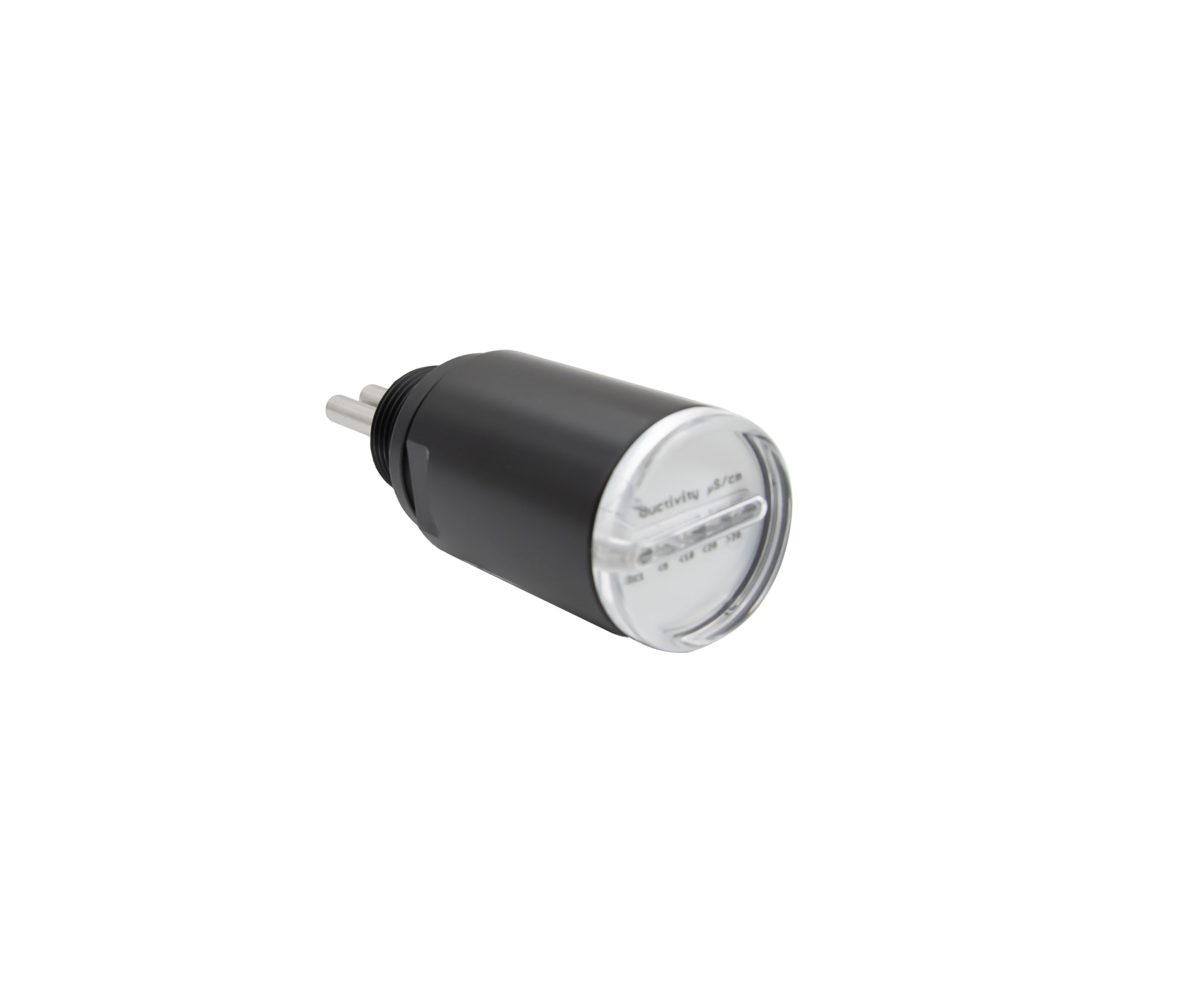

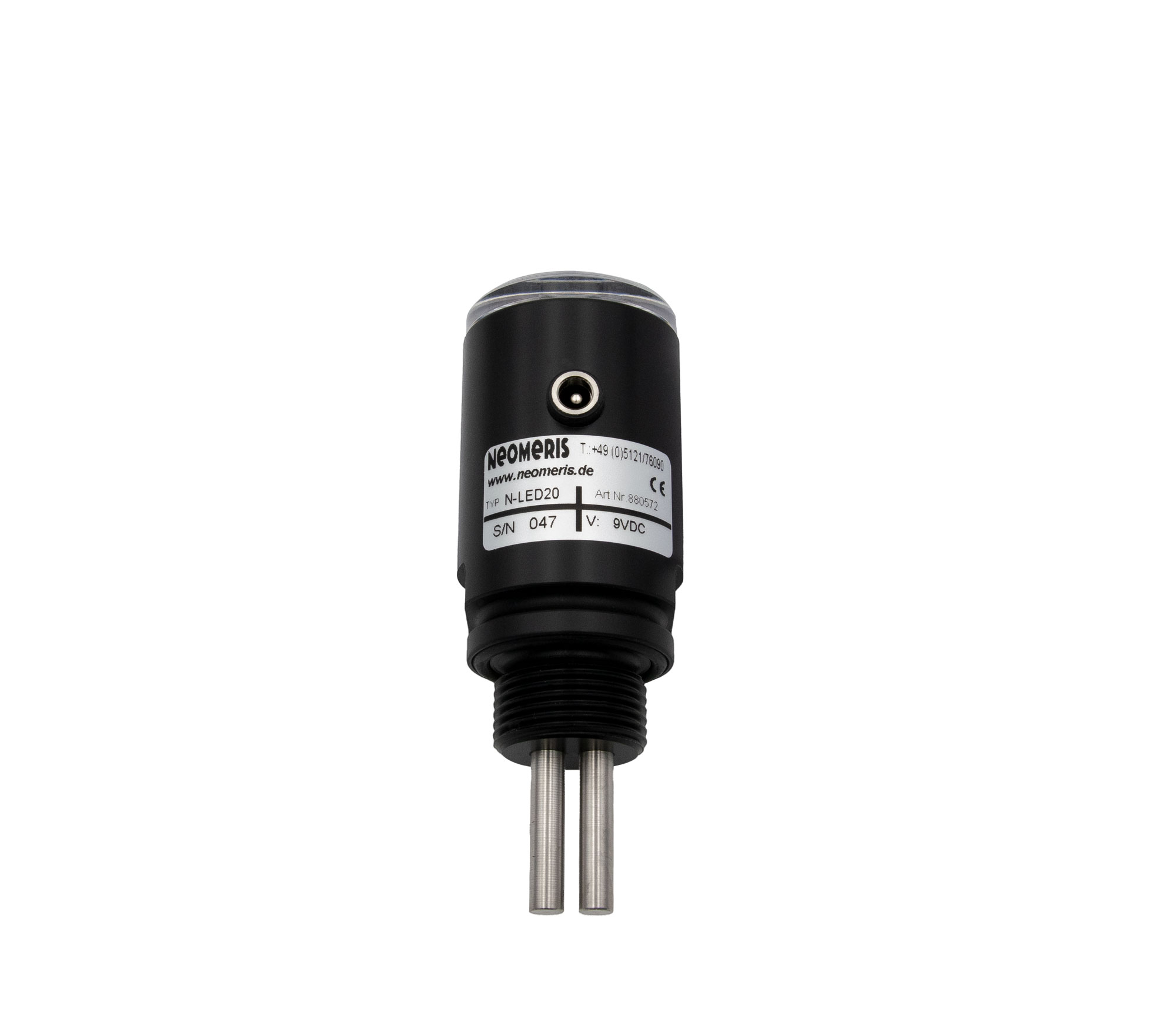

N-LED20, conductivity measuring instrument 0-20μS/cm with 5 LEDs and integrated 3/4″ screw-in measuring cell

Description "N-LED20, conductivity measuring instrument 0-20μS/cm with 5 LEDs and integrated 3/4″ screw-in measuring cell"

Technical data:

Measuring Range: 0 - 20 uS/cm (without temperature compensation)

<1,0 <5,0 < 10,0 < 20,0 > 20,0 uS/cm

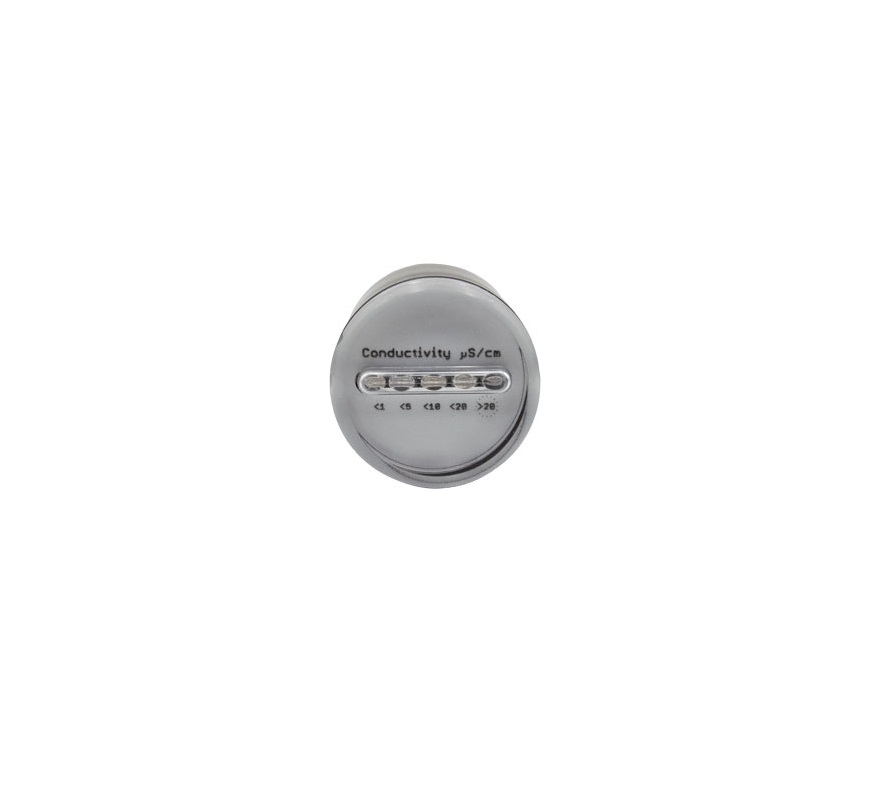

LED-Display: 3x green; 1x yellow; 1x red

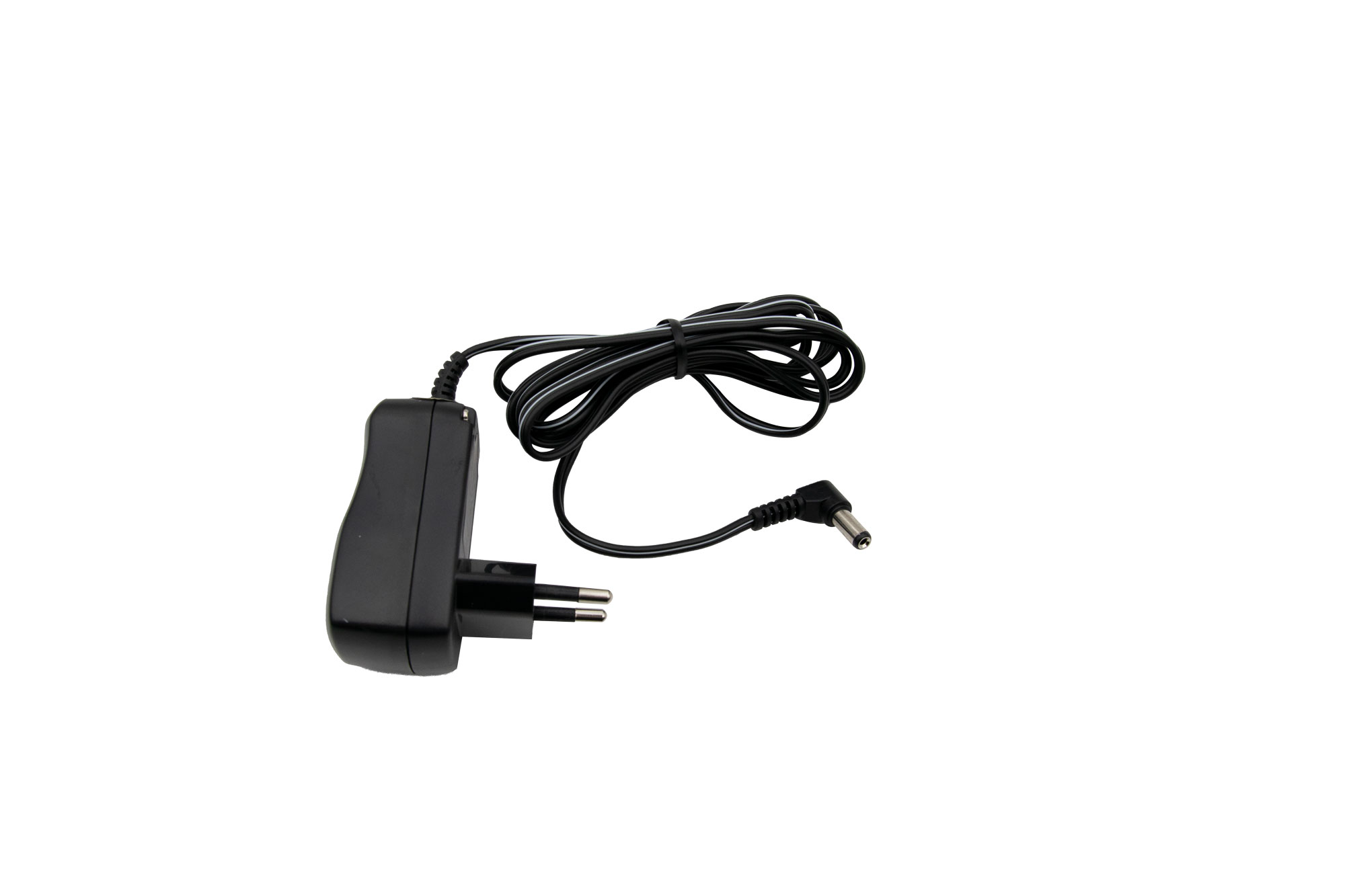

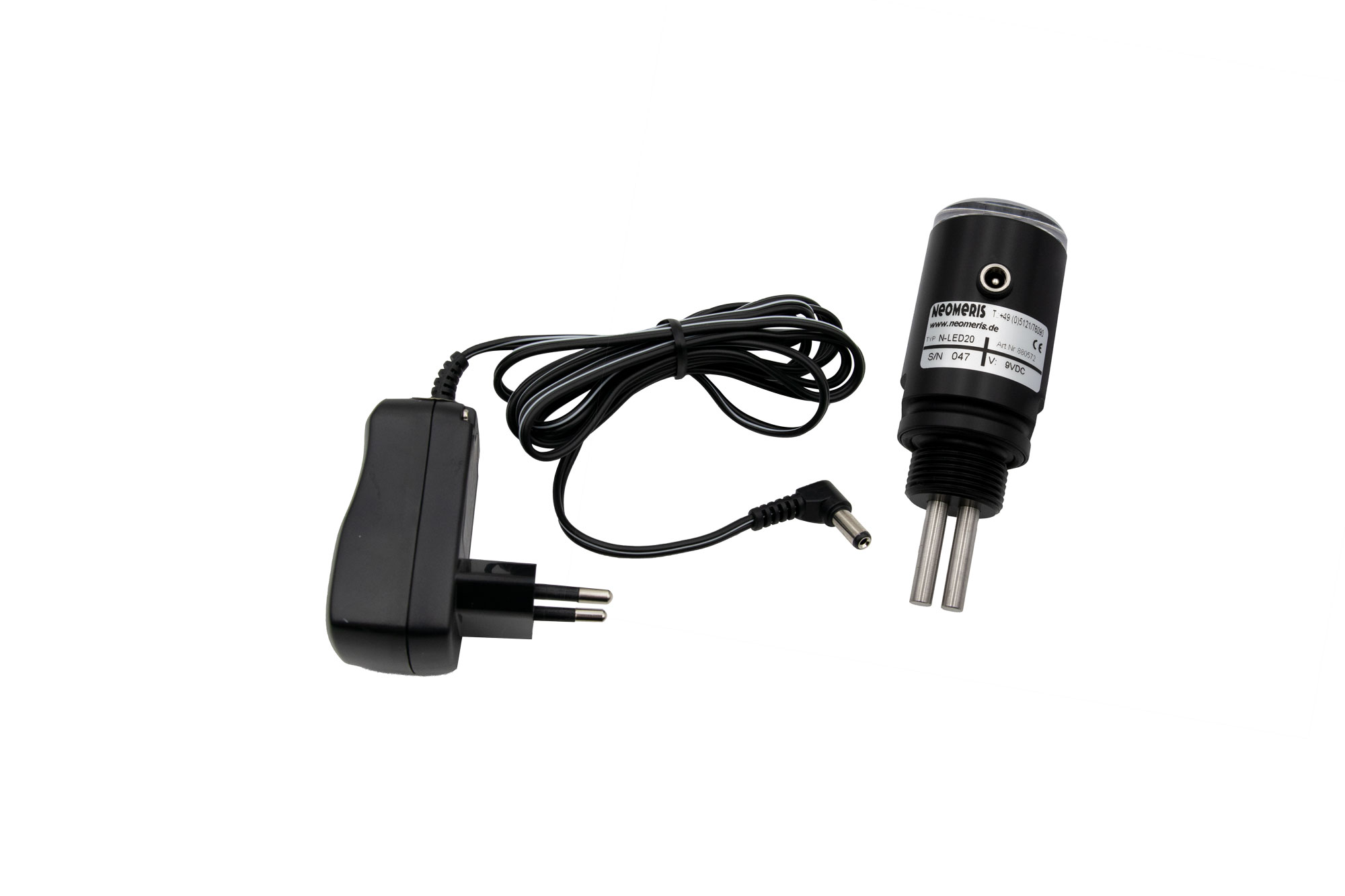

Voltage Supply: 100-240 VAC with wall plug transformer

Power Consumption: < 500 mW

Housing: POM black (Polyoxymethylen)

Vision Panel: PMMA (Acryl Glass)

Electrodes: Stainless Steel 1.4571

Dimension: Diameter 40 mm x 68 mm (Top) / 110 mm (Total)

Seals Electrodes EPDM

Seal Housing: EPDM

Operation Limits: P max: 6 bar; T max: 65 °C

Protection Class: IP 65*

Display            Measuring value

3 LED green <= 1,0 uS/cm

2 LED green < 5,0 uS/cm

1 LED green < 10,0 uS/cm

1 LED yellow < 20,0 uS/cm

1 LED red flashing >= 20,0 uS/cm
