LF measuring cell, C=0.1 with 12mm connection
Product number: 890601
135,75 €*
* Prices excl. VAT plus shipping costs.
Product information
Dimensions: 250 x 250 x 40 mm
Weight: 0,300 kg
Measurement parameters: Electrical conductivity
Description

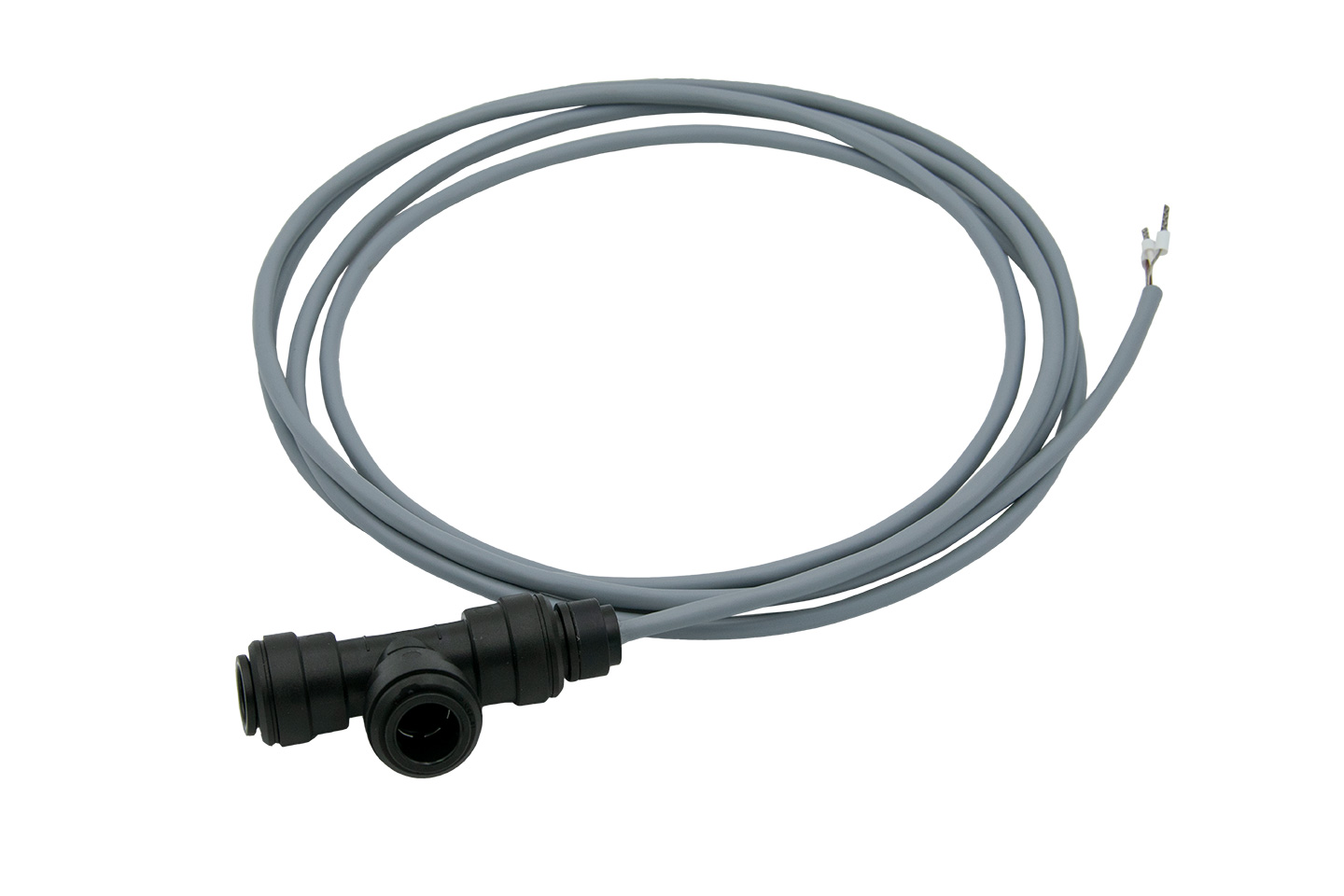

Description "LF measuring cell, C=0.1 with 12mm connection"
Our Neomeris conductivity cell with 12mm connection is used for the determination of the electrical conductivity in aqueous solutions.Inside the T-piece is the two-electrode measuring cell without temperature compensation.
The installation is easy and fast due to the John Guest connectors.
We recommend the use of the product in the fields of distillate, condensate, ultrapure water as well as fully demineralized water.
Technical data
Material Housing: POM T-piece John Guest ½"
Material electrodes: V4A 4571
Cell constant: C = 0.1 +-5%
Max. operating pressure: 6 bar
Max. operating temperature: 60°C
Electrical connection:
- brown electrode, outer sheath
- white Electrode, inside
- blue: shield
Cable length: 2.5 meters
