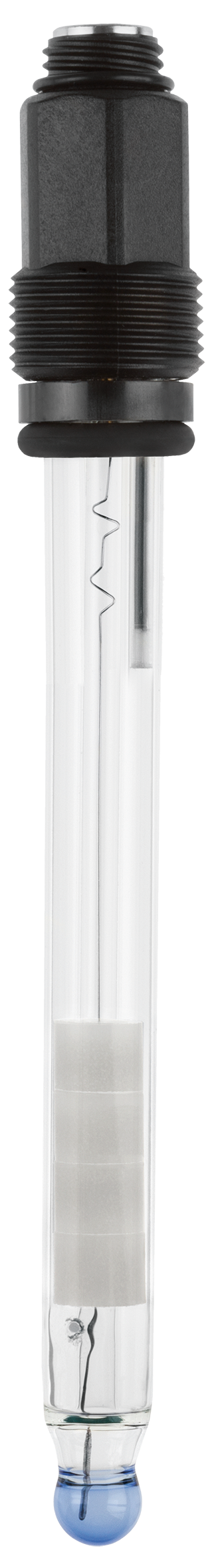

JUMO tecLine pH Elektrode für Abwasser, stark verunreinigte Medien, Suspensionen und Lacke

Product number: SW17442
203,10 €*
* Prices excl. VAT plus shipping costs.
JUMO tecLine pH Elektrode für Abwasser, stark verunreinigte Medien, Suspensionen und Lacke
Product no. SW17442 in the shop
Jumo

Available variants

Basic type supplement : Glass shaft, cartridge deflection system
Insertion length : 120mm, 225mm
Diaphragm : Hole diaphragm, gel of polymerised solid electrolyte ("diaphragmless"), PTFE - ring, Ring-gap diaphragm, gel of polymerised solid electrolyte ("diaphragmless")
Electrical connection of the electrode (onto which the cable is plugged) : Screw head Pg13.5 (S8) , VarioPin (VP) plug-in head Pg13.5
Extra code : Salt reserve + with integrated Pt100, Salt reservoir (837), Temperature sensor Pt100, without (000)
Active part : HA glass: pH 0 ... 14; -5 ... +80°C (high alkali use), UW glass: pH 0 ... 12 (14 for short periods); -5 ... +80°C

Product information

Dimensions: 50 x 200 x 50 mm
Weight: 0,200 kg

Description

Description "JUMO tecLine pH Elektrode für Abwasser, stark verunreinigte Medien, Suspensionen und Lacke"

Typical areas of application
  • industrial waste water technology
  • process measurements, electroplating, paper industry, beverage industry
  • oily waste water
  • suspensions, lacquers, media with solid particles
  • Double-chamber design in the presence of electrode poisons
  • Fluoride-containing (hydrofluoric acid-containing) media up to 1000 mg/l HF

Special features
  • Dirt-repellent PTFE ring diaphragm with highly viscous KCl solution (gel) or perforated or annular gap diaphragm with polymerised solid electrolyte - practically blockage-free
  • Cartridge discharge system with silver ion-free reference electrolyte
  • Pressure-resistant versions up to 10 bar (50 °C)
  • Temperature range: see order details
  • Optional temperature sensors can be integrated
  • Optional salt reservoir to increase service life in media with low conductivity
