JUMO ecoLine / JUMO BlackLine pH/ORP electrode in glass and plastic shaft version

Product number: 800059
161,00 €*
* Prices excl. VAT plus shipping costs.
JUMO ecoLine / JUMO BlackLine pH/ORP electrode in glass and plastic shaft version
Product no. 800059 in the shop
Jumo

Available variants

Electrical connection of the electrode (onto which the cable is plugged) : Fixed cable head Pg13.5 (blue) with fixed 1 meter cable and BNC plug, Screw head Pg13.5 (S8)
Insertion length : 120mm
Measuring resistor (temperature sensor) : without
Diaphragm : Ceramic
Measured parameter : ORP, pH
Extra code : KCL container (052), Salt reservoir (837), without (000)

Product information

Dimensions: 50 x 200 x 50 mm
Weight: 0,200 kg

Description

Description "JUMO ecoLine / JUMO BlackLine pH/ORP electrode in glass and plastic shaft version"

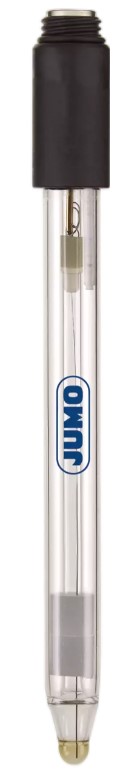

pH/ORP electrodes with glass shaft

Selected version:
  • without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series)
  • Screw head S8 Pg13.5
  • Ceramic diaphragm
  • Installation length 120mm (standard)
  • Type code (can also be found on your electrode):
Type 201005/51-18-22-0000-00-120/000 ,part no. 00405532
Type 201010/51-22-22-0000-00-120/000 ; part no. 00413906
Type 201005/51-18-60-1000-76-120/000 ; part no. 00459671

The electrodes of the JUMO ecoLine series are high-quality measuring sensors with a favourable price/performance ratio.

Active part pH
JUMO ecoLine electrodes  are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results.

Active part ORP
A robust platinum tip provides reliable measured values and allows easy cleaning of the sensor.

Reference system
A polymerised KCl solid electrolyte is used in the glass version. This is ideally suited for measurement in general aqueous media. aqueous media. For measurements in media with lower ion content or at high flow rates, the electrolyte can be the electrolyte can be equipped with an optional "salt reservoir" to increase the service life (if wished, please use our configurator). The JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the service life of the sensor. and therefore less susceptible to electrode poisons.
Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended for sporadic use of the sensor, for refreshing the sensor after longer, intensive use or for longer storage periods.

All sensors can be supplied as OEM versions on request. Special versions on request.

Areas of application
  • Drinking water monitoring and treatment
  • Swimming pool - Aquaristics (also seawater aquaristics)
  • Greenhouse technology
  • Lightly polluted industrial, process and waste water
  • Rainwater, pond water and surface water
  • hand-held measuring devices

Not recommended for
  • galvanic water treatment
  • industrial process and waste water
  • ultrapure water
  • therapeutic baths
  • biotechnology, sterilisation processes
