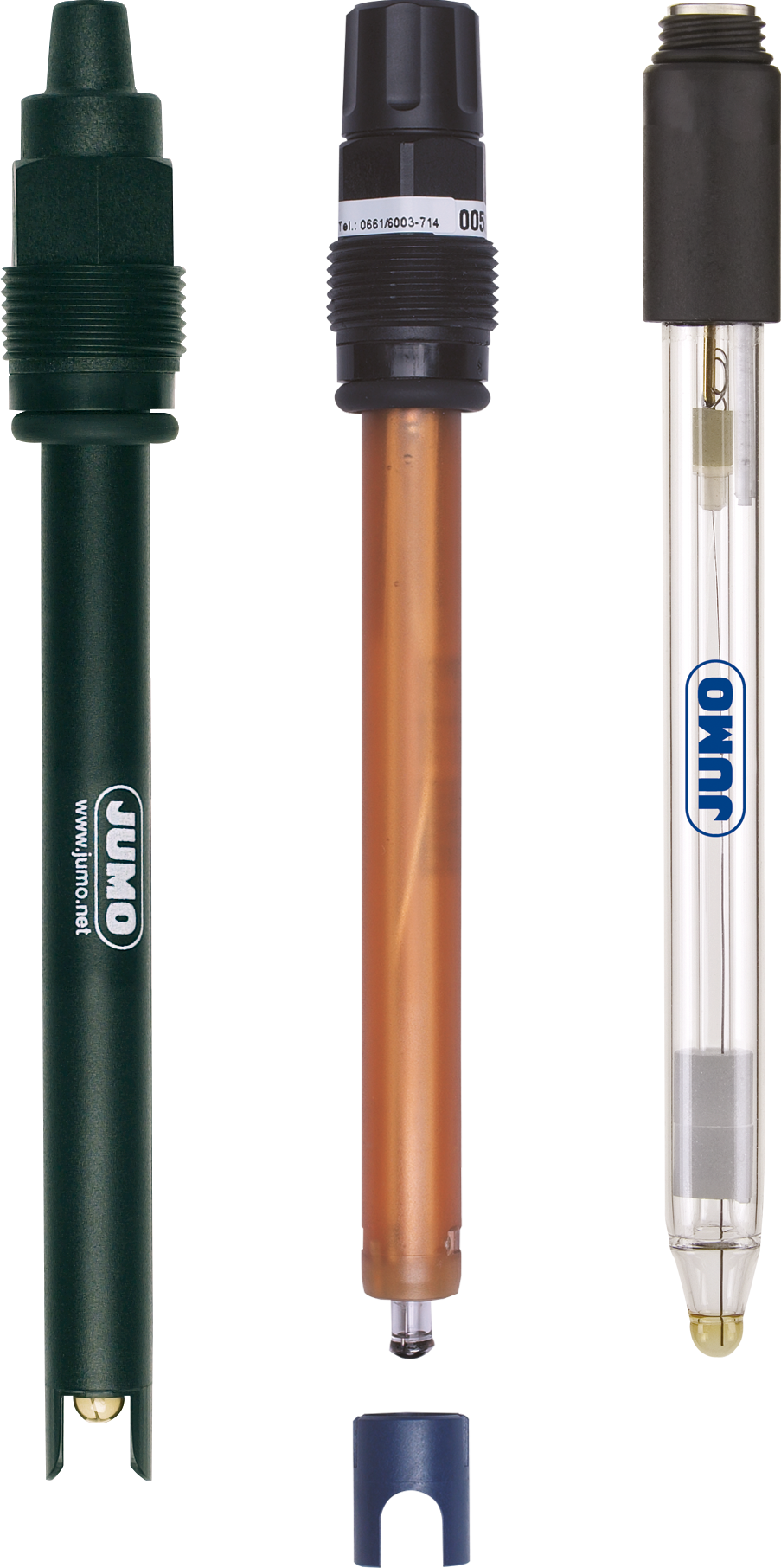

JUMO BlackLine pH/ORP plastic shaft electrode, S8 Pg13.5 screw head with fixed mounted protection basket

Product number: 800059M
115,70 €*
* Prices excl. VAT plus shipping costs.

Available variants

Insertion length : 120mm
Extra code : Salt reservoir (837)
Measuring resistor (temperature sensor) : without
Diaphragm : Ceramic
Measured parameter : ORP, pH
Electrical connection of the electrode (onto which the cable is plugged) : Fixed cable head Pg13.5 (black) with fixed 2 meter cable and BNC plug, Fixed cable head without thread (black) with 2 metre fixed cable and BNC plug, Screw head Pg13.5 (S8)

Product information

Dimensions: 50 x 200 x 50 mm
Weight: 0,200 kg


Description "JUMO BlackLine pH/ORP plastic shaft electrode, S8 Pg13.5 screw head with fixed mounted protection basket"

BlackLine pH/ORP electrodes with plastic shaft and fixed protection basket.

Selected version:
  • Without temperature sensor (not available for this series, only for Jumo tecLine and tecLine HD series)
  • Screw head S8 Pg13.5
  • Glass fibre diaphragm
  • Plastic shaft PEI
  • Fitting length 120mm (standard)
  • Type code (can also be found on your electrode):
Type 201005/65-18-22-0000-00-120/837 ; part-no. 00419812
Type 201005/65-18-45-2000-76-120/837 ; part-no. 00417300
Type 201005/65-18-65-2000-76-120/837 ; part-no. 00424828
Type 201010/65-22-45-2000-76-120/837 ; part-no. 00417301
Type 201010/65-22-65-2000-76-120/837 ; part-no. 00424950

The electrodes of the JUMO BlackLine series are high-quality measuring sensors with a favorable price/performance ratio.

Active part pH
The JUMO BlackLine plastic electrodes with fixed protection basket are equipped with the low-resistance JUMO UW glass. This guarantees fast and reliable measurement results.

Active part redox
The robust platinum tip ensures reliable measurements and is also easy to clean.

Reference system
The Black Line plastic shaft version PEI uses a polymerised KCl solid electrolyte. This is ideally suited for measurements in aqueous media. For measurements in media with fewer ions or at high flow rates, the electrolyte can be equipped with an optional "salt reservoir" to increase the service life. A polymerized KCl solid electrolyte is also used with this electrode, and the JUMO cartridge discharge system, which has been tried and tested for years, is used as the reference system. Here, the electrolyte remains free of silver ions over the lifetime of the sensor and is therefore less susceptible to electrode poisons.
The JUMO BlackLine has a high-quality ceramic diaphragm. The shaft is made of black PPO and has a permanently integrated protective basket. Optionally, the electrodes can be supplied in a storage container (quiver). This is recommended if the sensor is only used sporadically, for refreshing the sensor after longer, intensive use or for longer storage periods.

All sensors can be supplied as OEM versions on request. Special versions on request.

Areas of application
  • Drinking water monitoring and treatment
  • Swimming pool
  • Aquaristics (also seawater aquaristics)
  • Greenhouse technology
  • Lightly polluted industrial, process and waste water
  • Rainwater, pond water and surface water
  • hand-held meters

Not recommended for
  • galvanic water treatment
  • industrial process and waste water
  • ultrapure water
  • therapeutic baths
  • biotechnology
  • sterilisation processes
