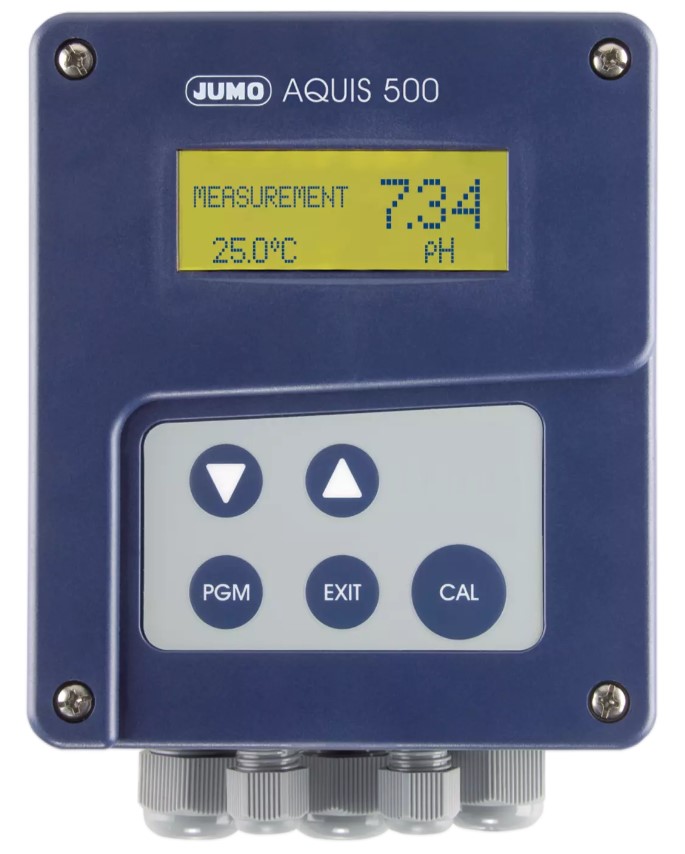

JUMO AQUIS 500 pH – Transmitter/controller for pH value, redox voltage, NH3 (ammonia), concentration and temperature

Product number: 800051

810,30 €*

* Prices excl. VAT plus shipping costs.

JUMO AQUIS 500 pH – Transmitter/controller for pH value, redox voltage, NH3 (ammonia), concentration and temperature

Product no. 800051 in the shop

Available variants

Unit selection: Individual: According to order code from JUMO data sheet, please inform us., Version 1: Stock Version, Type 202560/20-888-888-310-310-23/000 ; Part No. 00480051, Version 2: Stock Version: Type 202560/20-888-000-310-000-23/000 ; Part-No. 00480050, Version 3: Stock Version: Type 202560/20-888-000-000-25/000 ; Part-No. 00491075, Version 4: Production version: Type 202560/10-888-888-310-310-23/000 ; Part No. 00480048, Version 5: Production version: Type 202560/10-888-000-310-000-23/000 ; Part No. 00480044, Version 6: Production version: Type 202560/20-888-888-310-310-25/000 ; Part No. 00480049

Product information

Dimensions: 250 x 200 x 150 mm

Weight: 1,200 kg

Measurement parameters: pH value, ORP voltage or ammonia concentration measurement

Range of application: Universally applicable in water and waste water management, industrial, process and waste water, drinking, well and surface water, leakage monitoring in cooling systems

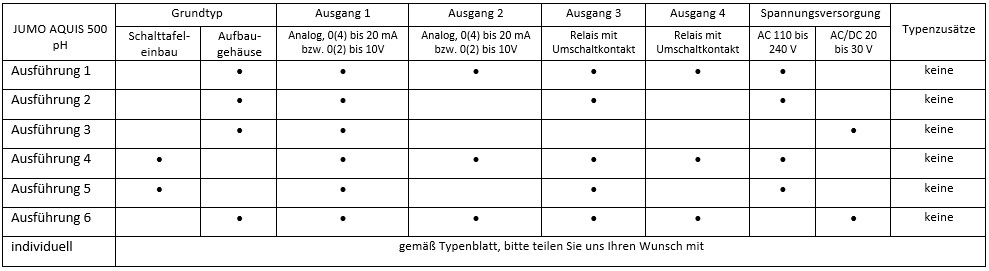

Our comment: Under the tab "Selection matrix & technical data" you will find an overview of the respective versions

Description

Description "JUMO AQUIS 500 pH – Transmitter/controller for pH value, redox voltage, NH3 (ammonia), concentration and temperature"

Version 2: stock version: type 202560/20-888-000-310-000-23/000 ; part-no. 00480050

The unit is used for measuring/controlling the pH-value, the redox-voltage or the NH3-(ammonia)-concentration. The function can be switched directly on the unit. Depending on the measurand, combination electrodes (e.g. pH/redox combination electrodes, gas-sensitive sensors) or separate versions (glass/metal electrodes with separate reference electrode) can be connected. The second input variable is the temperature measurement, which can be carried out with a Pt 100/1000, for example. Automatic temperature compensation is thus possible for the measured variables pH value and NH3. The units are operated via clear keys and a large LC graphic display. This display enables good readability of the measured value. The display of the parameters in plain text makes configuration easier for the operator and supports correct programming of the unit. The modular design of the unit allows it to be adapted to the requirements of the application. Up to four outputs are available.

Special features

direct switching option for pH value, redox voltage or NH3 (ammonia) concentration
Automatic temperature compensation
Large LC graphic display with backlighting
Display selectable: large digits, bar graph or tendency display
Solderless connection technology - Calibration options depending on measurand one/two/three-point calibration
calibration logbook
Impedance measurement can be activated for pH measurement
Asymmetrical and symmetrical connection of pH sensors
Possibility of connecting pH ISFET sensors through integrated output for sensor power supply
Protection class IP67 for surface mounting, protection class IP65 for control cabinet mounting
User languages switchable German, English, French; further languages can be loaded via setup program
Through setup program: convenient programming, system documentation, reloading of further user languages

JUMO AQUIS 500 – Modular Measuring and Control Systems for Precise Water Analysis
The JUMO AQUIS 500 series includes a range of powerful, modular measuring and control devices for monitoring analytical water parameters such as pH, redox, conductivity, temperature, and more. Each model (e.g., AQUIS 500 pH, CR) is tailored to a specific sensor type or measurement range, making the series ideal for use in water treatment, environmental technology, process engineering, and industrial process monitoring.

At HeylNeomeris, the AQUIS 500 series provides reliable solutions for stationary applications that demand high measurement accuracy, flexible system integration, and user-friendly operation.

Advantages of the JUMO AQUIS 500 Series:
• The series offers tailored solutions for various measurement tasks – from pH to conductivity
• Modular design and compatibility allow for easy integration into existing systems
• Digital interfaces (e.g., 0/4–20 mA, relay outputs) enable seamless automation
• The devices deliver stable and precise measurements, even during continuous operation
• A clear display and intuitive menu navigation simplify installation and maintenance
• With IP65 protection and a robust design, they are well suited for industrial environments
