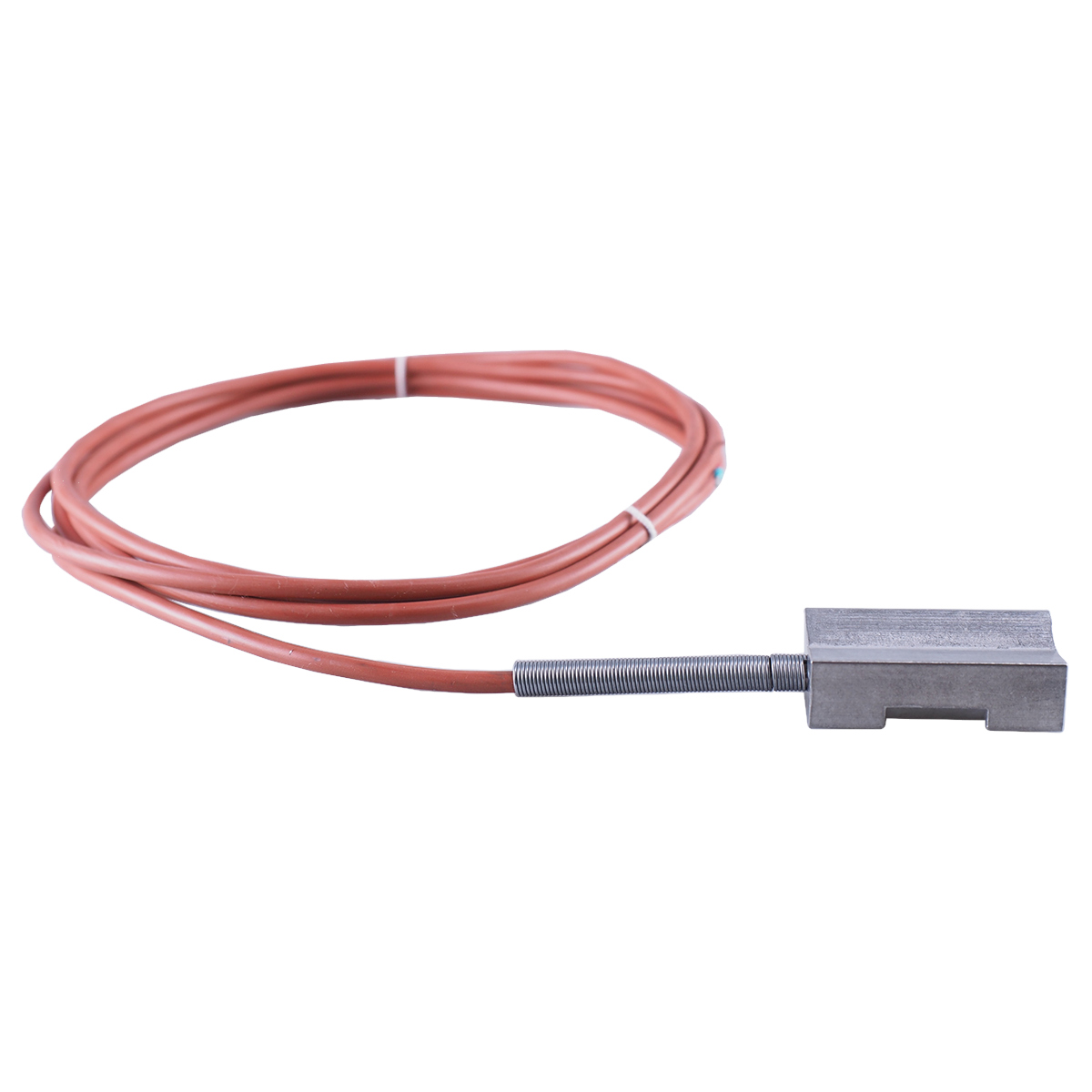

JUMO contact resistance thermometer with connection cable, protective fitting aluminium (25 x 50 mm)

Description "JUMO contact resistance thermometer with connection cable, protective fitting aluminium (25 x 50 mm)"

Contact resistance thermometer with mounting hole Stainless steel protective fitting

•  Temperature range from -50 to +260°C (PTFE)
•  1× Pt100 in two-wire circuit
•  Tolerance class according to DIN EN 60751: Class B (standard)
•  Connection cable end: Wire end ferrules to DIN 46228 Part 4 (standard)
•  Connection length in mm: 2500 mm
• - Extra code: Spring bend protection

•  Suitable for round and flat surfaces
•  Quick and uncomplicated installation
•  with protective fittings made of various materials
•  Low thermal mass
•  Optimum heat transfer from the measuring point to the sensor

Contact resistance thermometers are ideal for precise temperature measurements on closed pipe systems and other round or flat surfaces. The uncomplicated mounting with clamping straps or hose clamps eliminates the need for mechanical processing of the measuring point.
Indirect temperature measurement guarantees interference-free temperature measurement, unaffected by flow, pressure or chemical influences. Due to the low thermal mass of the measurement object, the influence is kept to a minimum. Heat-conducting paste is optionally available to optimise heat transfer.
Large temperature differences between the measured medium and the environment are directly reflected in the measurement; additional insulation is recommended here.
A Pt100 temperature sensor in accordance with DIN EN 6
