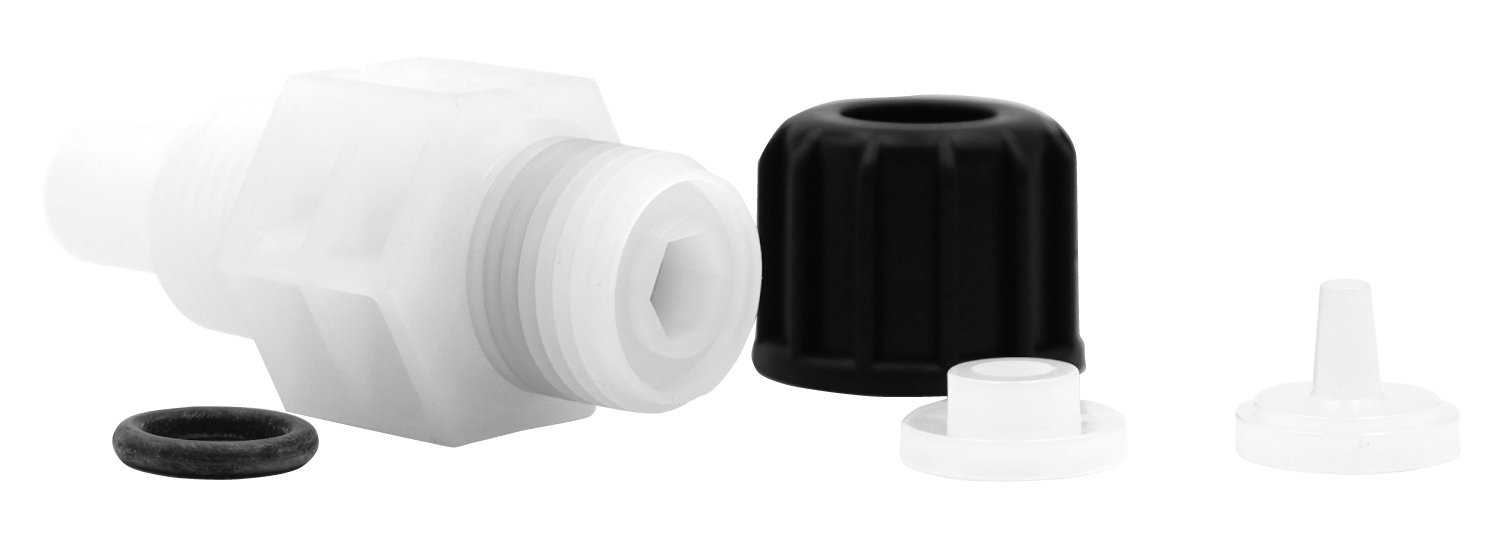

emec LOTUS MINI injection valve 1/2″

Product number: 896762
33,00 €*
* Prices excl. VAT plus shipping costs.
Product no. 896762 in the shop
emec

Available variants

Version : 4 x 6, 4 x 6, opening pressure: 0.3 bar, 4 x 6, opening pressure: 3 bar, 6 x 8 + extension 10 cm, 6 x 8, opening pressure: 0.3 bar

Description

Description "emec LOTUS MINI injection valve 1/2″"

This injection valve made of polyvinylidene fluoride (PVDF), which is designed for all emec dosing systems, is screwed into the pipe and is suitable for dosing both chlorine and pH minus.


Technical data:
Body: PVDF
O-rings and lip seal: FKM B (Viton) max.
 Flow rate: 120 l/h Immersion
depth: max. 55 mm
 Operating range: max. 16 bar/25 °C (3 bar/50 °C)
 Process connection: 1"
Hose connection: 8x10 mm
