Products > Dosing pumps

emec LASP4 suction lance with M12 connection

Product number: 896305
110,00 €*
* Prices excl. VAT plus shipping costs.
emec LASP4 suction lance with M12 connection
Product no. 896305 in the shop
emec

Available variants

Connection cable version (unit side) : BNC connector (for K- pumps and VMS pumps), M12 connector (for Prisma pumps)
Sealing material : EPDM, Viton
Version : 122cm Immersion length, 40 cm immersion length, 75 cm immersion length

Product information

Dimensions: 115 x 740 x 105 mm
Weight: 0,710 kg
Our comment: We would be pleased to offer you further variants of the suction lances. You will find the operating instructions in the download area and the data sheet at the end of the product description as a download link.

Description

Description "emec LASP4 suction lance with M12 connection"

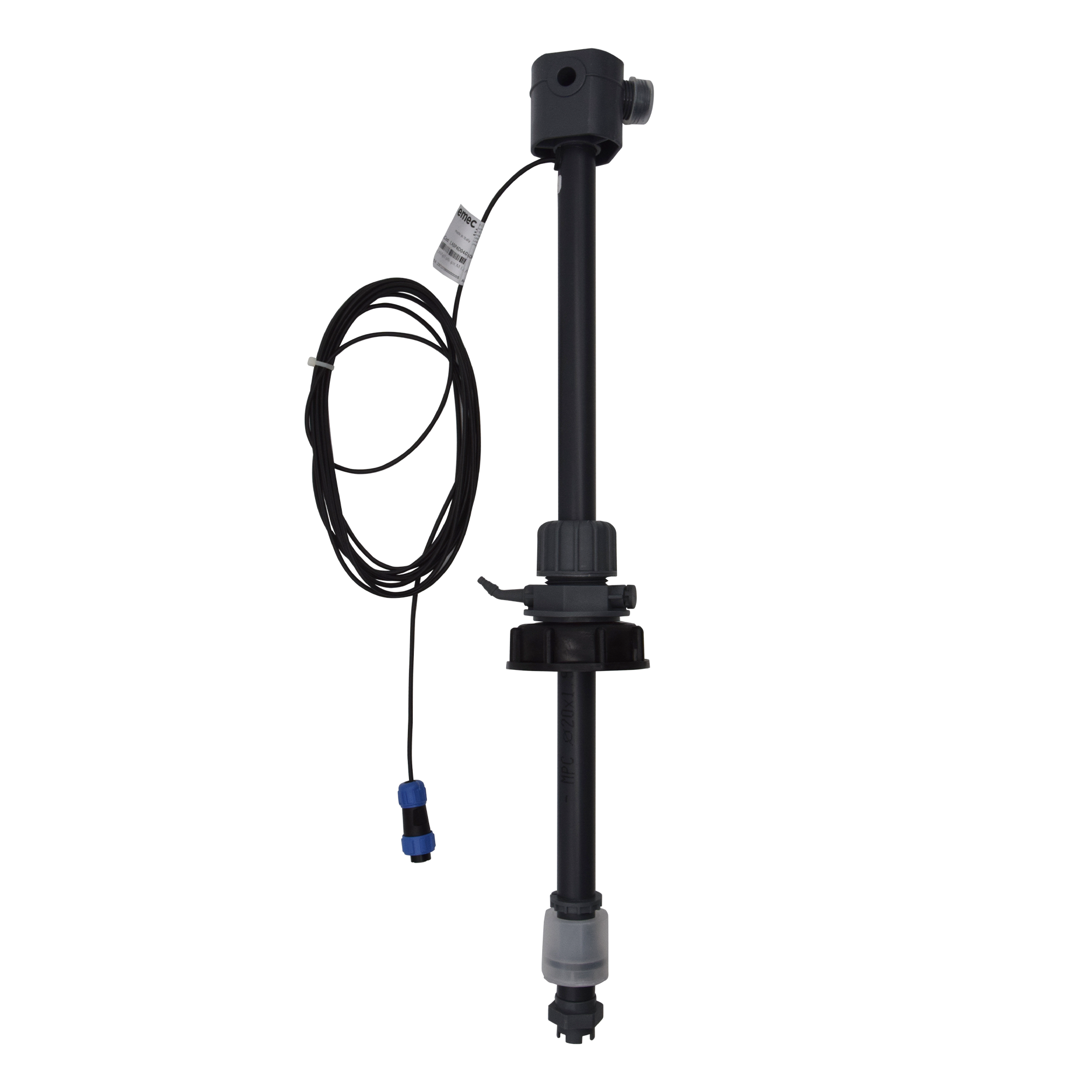

Suction lance for extracting a medium directly from a supply container (canister/IBC/CNT tank/barrel)

Foot valve with pre-filter and non-return valve. The level switch generates a digital empty signal. Venting nipple 4mm for return of venting hose from dosing pump or overpressure/multifunction valve.

Our suction lances can be adjusted in height, this means that, for example, instead of pumping from a 50 litre container, you can also pump from a 10, 20 or 30 litre container with the 40cm suction lance.

Series: LASP4
  • Material O-ring: EPDM (neutral) or FP (Viton)
  • Immersion length: 40cm, 75cm or 122cm
  • Connection on the unit side: M12 or BNC
  • Thread/hose connection (mm): 1/2 4x6 (suction capacity max 10l/h)
  • Number of suction connections: 1-suction connection
  • Mounting connection: C61 canister connection (for 40cm suction lance) or mounting connection 1 1/2" CNT/IBC (for 122cm suction lance)
  • Number of floats/switching direction/electrical connection: 1st level/N.O/M12(PRIUS/PRISMA)
  • Length of connection cable: 3.5m
  • Intake filter: LASP4
  • Special feature: Valve ball ceramic
