Ozonia Membrel MkV – Electrolytic Ozone Generator

Product number: 850941
21.138,89 €*
* Prices excl. VAT plus shipping costs.

Available variants

Ozone output : 2x 3-4 g/h (two-cell version), 3-4 g/h (single-cell version), 3x 3-4 g/h (three-cell version)
Version : Component unit, System unit

Product information

Dimensions: 870 x 850 x 650 mm
Weight: 80,000 kg


Description "Ozonia Membrel MkV – Electrolytic Ozone Generator"

Ozonia* Membrel MkV ozone generation plant based on the catalytic water electrolysis process; suitable for sterilization and sanitization of ultrapure water in ring piping systems in the pharmaceutical and semiconductor industries

The plant consists of 1, 2 or 3 current-regulated electrolysis cells including electrode set (anode, cathode and solid electrolyte membrane) and an electric feeder.

  • Ozone production per cell: 3-4 g/h
  • Feed water flow per cell: nom. 100 l/h
  • Feed water conductance: < 20 μS/cm
  • Operating pressure: max. 6 bar
  • Electrical power per cell: 460 W/ 230 VAC, 50-60 Hz
  • Ozone power setting: 8-100%
  • Control functions (floating): System ON/OFF; control and set point LOCAL/REMOTE supply ON/OFF /collective alarm
  • Control function (4-20 mA): electrolysis current for ozone production

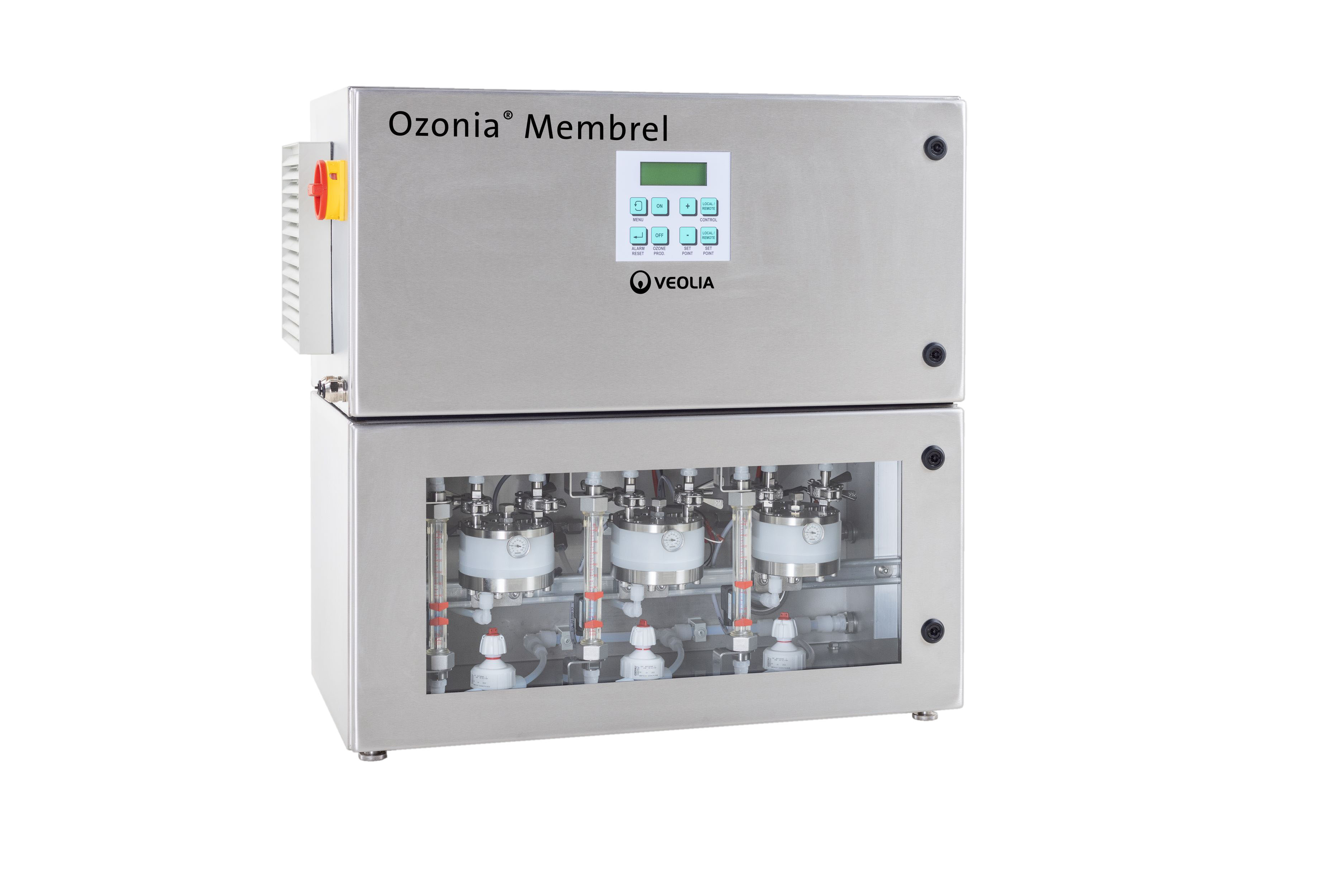

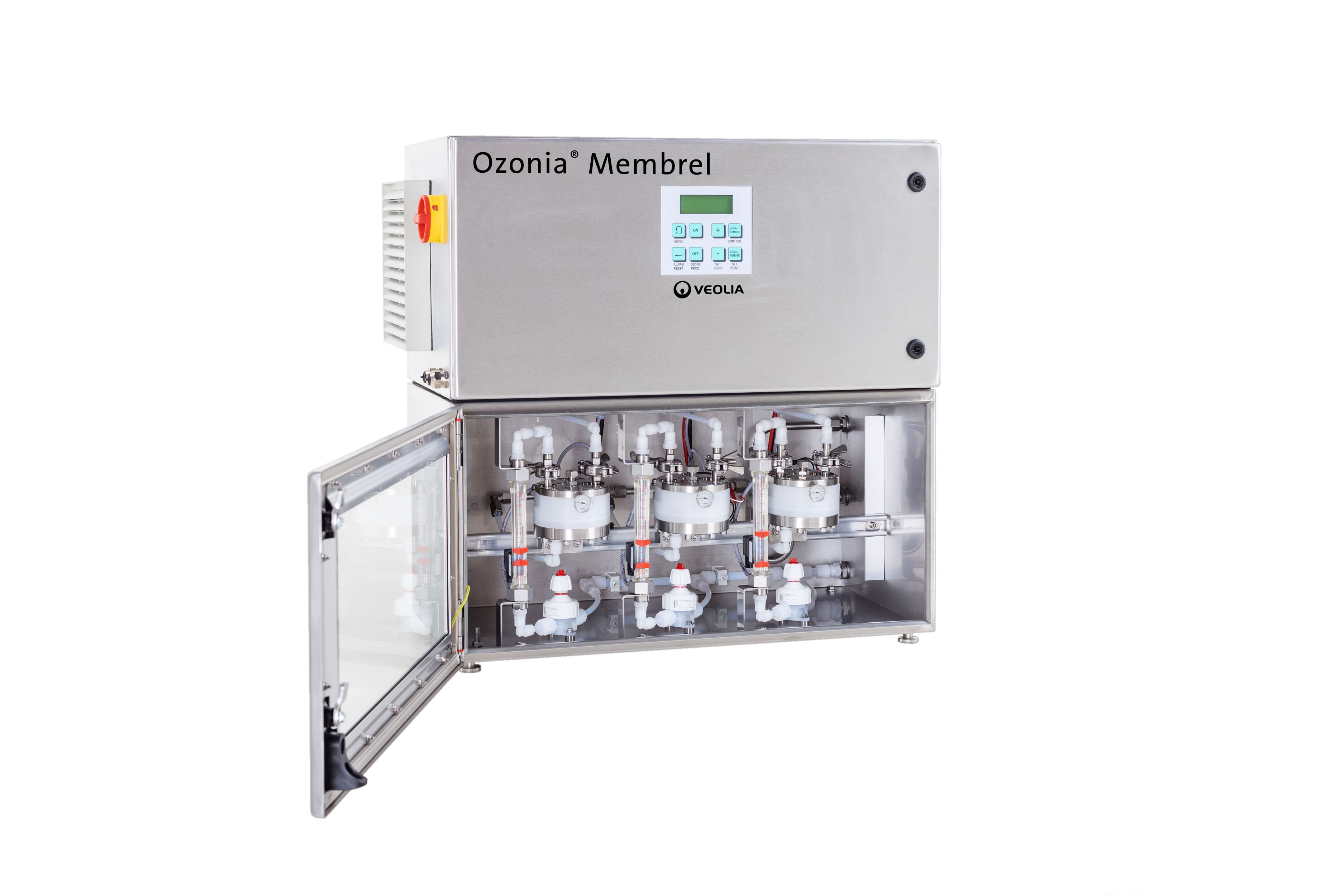

System plants MkV-S ready for operation and connection; consisting of:

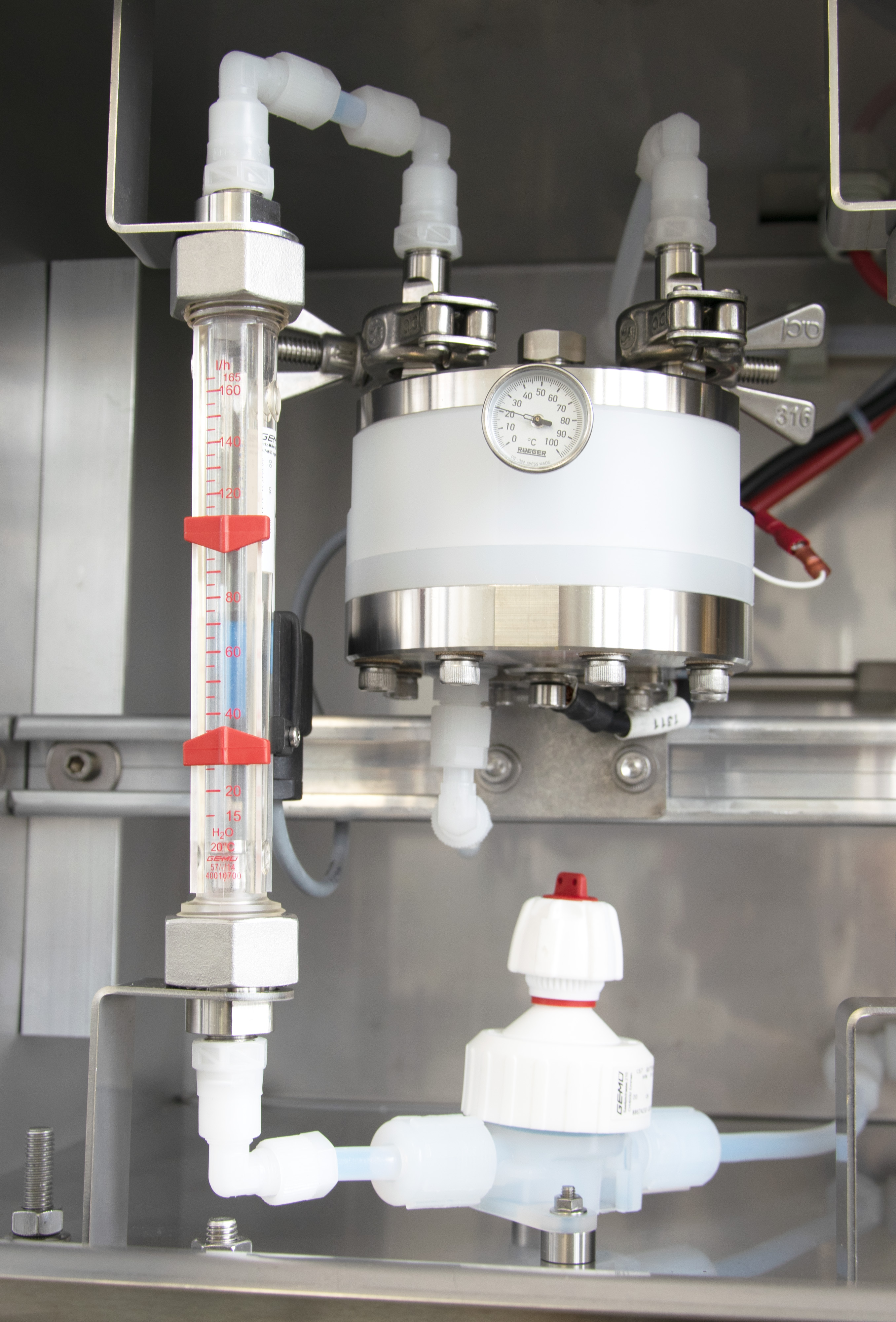

  • Electrolysis cells made of PVDF / titanium / stainless steel (316L) internally piped incl. flow meter and control valve; with temperature and flow monitoring; installed in stainless steel housing IP54

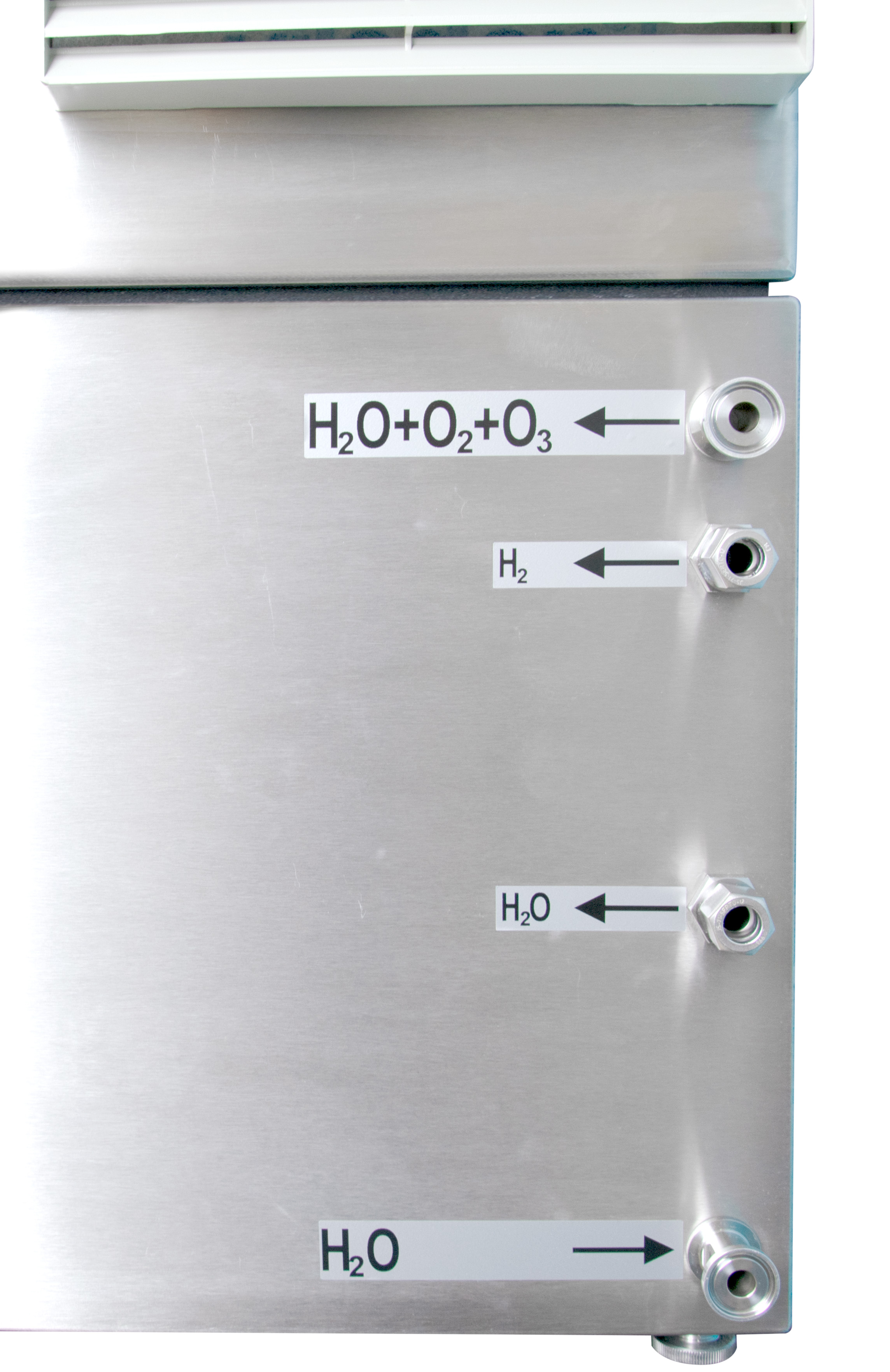

  • Connections Feed water and ozone-strong water: TriClamp TC25 ID 10 mm n. DIN 32676-A
  • Connections hydrogen and waste water: SERTO for pipe 10 x 1 mm
  • Electrical supply unit with power supply, controller unit and emergency battery in IP 54 stainless steel housing, wired directly to electrolysis cell via connection cable

*Trademark of Veolia; may be registered in one or more countries.
