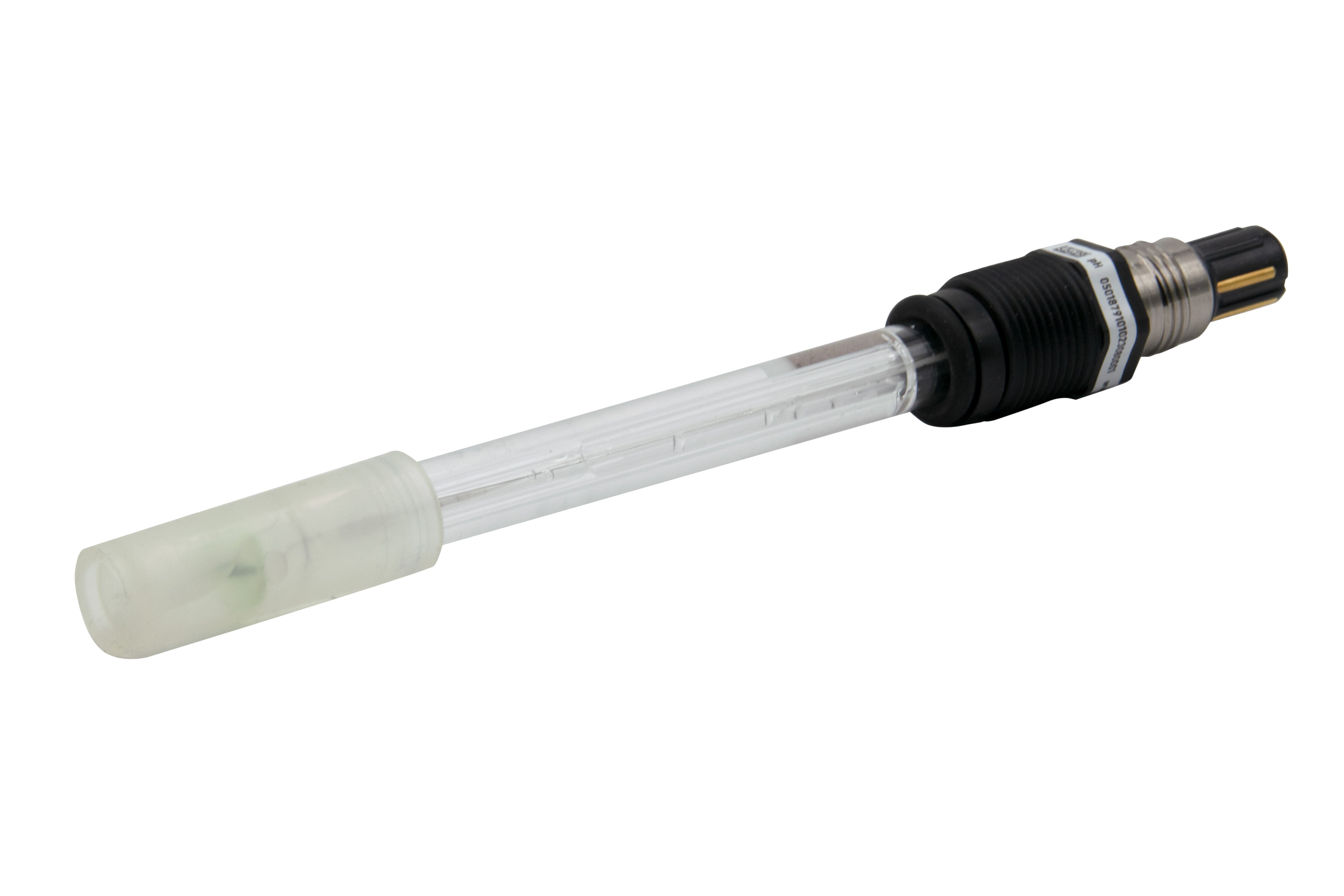

0-130 °C, PT1000 – Variopin pH electrode – combination electrode JUMO tecLine HD (201021/10-12-04-18-120/841)
Product information
Description
Description "0-130 °C, PT1000 – Variopin pH electrode – combination electrode JUMO tecLine HD (201021/10-12-04-18-120/841)"
The JUMO "Heavy Duty" pH electrode records the pH value of water and aqueous media. The rugged industrial electrode is designed for the most demanding applications with increased dirt and toxic loads as well as oily media.- stable and reliable
- measured values low maintenance and robust
- extended service life
- PT1000 temperature sensor
- VarioPin electrode head (always required for versions with temperature sensor)
- PTFE ring diaphragm
- Insertion length 120mm (standard)
- Type code (can also be found on your electrode): 201021/10-12-04-18-120/841
| Pos. | Code | Description |
|---|---|---|
| (1) Basic type | ||
| 1 | 201021/10 | JUMO tecLine HD pH – pH combination electrode with glass shaft, gel electrolyte, double chamber, salt reservoir, up to 13 bar |
| (2) Sensing element | ||
| 2 | 12 | HT glass |
| (3) Diaphragm | ||
| 3 | 04 | PTFE ring |
| 3 | 11 | Hole diaphragm |
| (4) Electrical connection | ||
| 4 | 18 | VarioPin (VP) plug head Pg13.5 |
| 4 | 82 | N screw head (S8) Pg13.5, PPS material |
| (5) Insertion length | ||
| 5 | 120 | 120 mm (standard) |
| 5 | 225 | 225 mm |
| (6) Type extras | ||
| 6 | 000 | None |
| 6 | 841 | Integrated Pt1000 |
| 6 | 960 | With JUMO digiLine electronics, M12 plug connection, 5-pin (Output: digital interface) |
| 6 | 961 | With JUMO digiLine electronics, M12 plug connection, 8-pin (Output: 4…20 mA and digital programming interface) |
| Designation | (1) | (2) | (3) | (4) | (5) | (6) |
|---|---|---|---|---|---|---|
| Order code | – | – | – | – | – | / |
| Order example | 201021/10 | 12 | 04 | 82 | 120 | 000 |
Frequently Asked Questions
You use this electrode to measure the pH value of liquids. This means you can determine whether a liquid is acidic, neutral, or alkaline.
Yes, it is specifically designed for dirty and challenging media such as wastewater or paints. This robust industrial electrode is engineered for the most demanding applications involving high levels of contamination and toxins, as well as oily media.
Yes, it is suitable for applications up to 130°C and remains stable under these conditions.
No, it features a robust design and requires minimal regular maintenance.
Yes, it delivers stable readings even in oily and heavily contaminated media.
Its heavy-duty construction ensures a significantly extended service life.
