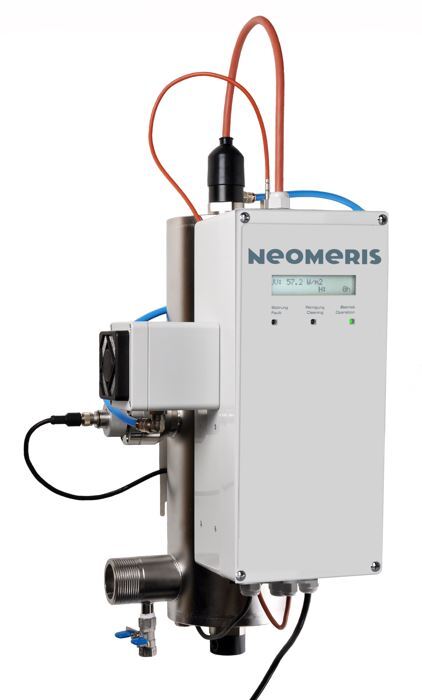

UV professional DVGW HOT

Product number: 880484

Available variants

Flow rate at UV transmission 98% / 1cm and 400 J/m2 UV exposure - warm water up to 60°C : 17,6 m3/h, 24 m3/h, 3,5 m3/h, 9,5 m3/h

Product information

Dimensions: 270 x 450 x 270 mm
Weight: 12,000 kg


Description "UV professional DVGW HOT"

DVGW certified unit series for disinfection of drinking water up zo 60 °C

  • Radiation chamber made of V4A stainless steel 1.4404 electropolished with sampling tap made of stainless steel, flammable at inlet and outlet
  • Built-in measuring window according to DVGW W-294 with screwed-on standardised selective UV-C sensor in the wave range of 254 nm according to DVGW W-294 or Ö-Norm 5873-1
  • Venting and draining plug
  • Built-in water baffle to divert the flow of water
  • Longlife high-performance UV-C low-pressure lamp built into high-quality quartz jacket pipe
  • Electronic monitoring device with illuminated LCD display of UV-C intensity in W/m2, operating hours, number of switch-ons and mains failures, rolling display of optionally measured temperature and flow rate
  • Signal LEDs for indication of "operation", "cleaning" and "malfunction" as well as on/off push-button
  • Potential-free signalling contacts for pre-alarm and malfunction
  • 4-20 mA signal output proportional to UV-C intensity, ext. enable on/off, relay output for controlling a discard valve depending on the water temperature (cooling)

  • Drinking water supply
  • Industrial process water
  • Pharmaceutical and chemical industry
  • Beverage industry and breweries
  • Food industry
  • Hospitals and clinics
  • Pure and ultra-pure water disinfection
  • Plants for cold and hot water (legionella prophylaxis)
  • Swimming and whirlpool baths

Further advantages
  • Compact design
  • Integrated wall mounting plate on irradiation chamber
  • Economical

Unit variants
  • Neomeris UV professional DVGW 3.5 HOT
  • Neomeris UV professional DVGW 9.5 HOT
  • Neomeris UV professional DVGW 17.6 HOT
  • Neomeris UV professional DVGW 24.0 HOT
