Service set Professional for 2-year maintenance Testomat® 808 SiO2

Product number: 890612
1.093,40 €*
* Prices excl. VAT plus shipping costs.
Heyl

Product information

Our comment: For units with serial number 253.061 and higher, an adjustment with silicate-free water is required after installation. For units with an older serial number, a software update must be carried out in addition to the adjustment mentioned above. Please refer to the operating instructions for this.

Description

Description "Service set Professional for 2-year maintenance Testomat® 808 SiO2"

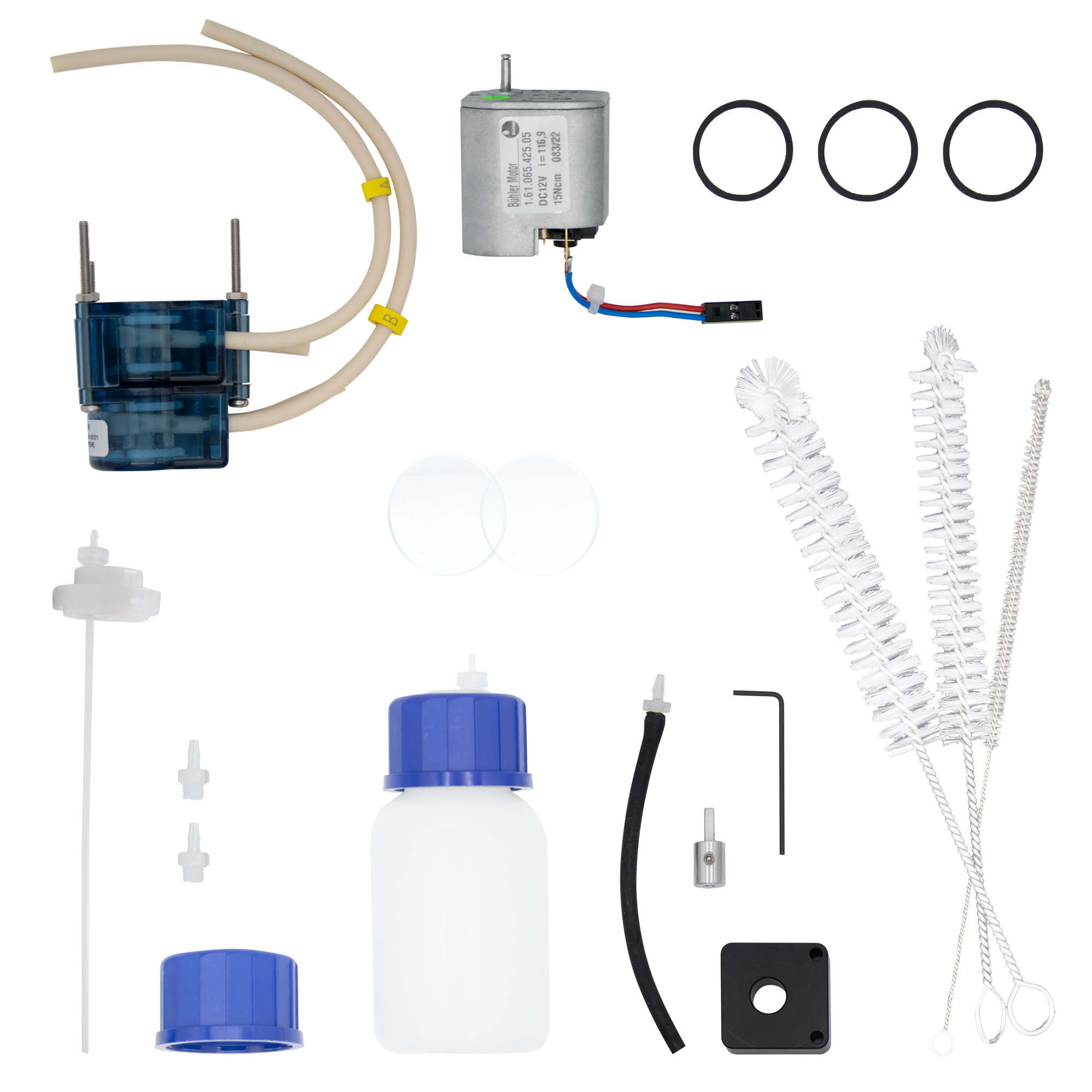

Service set contains:
2 x sight glasses 30 x 3
3 x flat gasket 24 x 2
1 x insert for screw cap & suction tube 100 ml bottle
1 x insert for screw cap & suction tube 500 ml bottle
1 x double pump head conversion kit
1 x gear motor
2 x Hose connector
1 x Cleaning brush set


Important:
After replacement, the pump must be recalibrated in Testomat® 808 SiO2.
The adjustment is available from firmware version T808_83-003. Carry out a firmware update for older versions before performing the adjustment! (Serial number less than 253.061)
For this calibration, it is important that you use water with a silicate content of 0 ppm, otherwise the zero point calibration will be incorrect and lead to false measurement results.
To ensure this, please use the silicate filter cartridge specially developed for this process for the T808 SiO2, article 270344.
(For additional information and instructions on the equipment you need for the software update, please refer to the operating instructions. The instructions "Replacing the pump head on Testomat® 808 SiO2" are also available)
